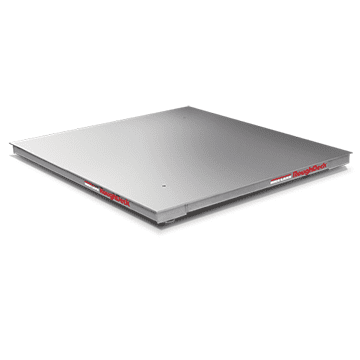

The RoughDeck SS floor scale is designed specifically for Legal for Trade applications requiring the added corrosion protection of stainless steel. Applications include dry chemical operations, fertilizer plants and other industries which require non-washdown corrosion resistance.
A rigid six-inch, 304 stainless steel channel frame and smooth top plate provide a durable scale deck. For added corrosion resistance, four NTEP Certified stainless steel load cells, a stainless steel TuffSeal summing junction box and EL147HE hostile environment load cell cable complete the RoughDeck SS package.
The channel frame provides added protection by enclosing the load cells, cable and junction box inside, away from chemicals and other industrial elements.
All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.
| End Load Capacity: 200% full scale at 1,000 lb 100% full scale at 2,000 lb and 5,000 lb 80% full scale at 10,000 lb Cable Length: Scale Weldment: |
Junction Box: TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card Welding: Threaded Eyebolt: |
Warranty (limited): Weldment: Five-year Load cells: Two-year All other components: One-year Approvals: |
| Model | Scale,Floor Roughdeck 2.5×2.5HPSS-2K 2-1/2ftx2-1/2ftx3-1/2 2,000 lb 20ft NTEP III SST, Scale,Floor Roughdeck 3x3HPSS-1K,3ftx3ftx3-1/2in,1000lb-20ft NTEP III SST, Scale,Floor Roughdeck 3x3HPSS-2K 3ftx3ftx3-1/2 2,000 lb 20ft NTEP III SST, Scale,Floor Roughdeck 4x4HPSS-1K,4ftx4ftx3-1/2,1000lb-20ft NTEP III SST, Scale,Floor Roughdeck 4x4HPSS-5K 4ftx4ftx3-1/2 5,000 lb 20ft NTEP III SST, Scale,Floor Roughdeck 4x4HPSS-10K 4ftx4ftx3-1/2 10,000 lb 20ft NTEP III SST, Scale,Floor Roughdeck 4x5HPSS-5K 4ftx5ftx3-1/2 5,000 lb 20ft NTEP III SST, Scale,Floor Roughdeck 4x5HPSS-10K 4ftx5ftx3-1/2 10,000 lb 20ft NTEP III SST, Scale,Floor Roughdeck 5x5HPSS-5K 5ftx5ftx3-1/2 5,000 lb 20ft NTEP III SST, Scale,Floor Roughdeck 5x5HPSS-10K 5ftx5ftx3-1/2 10,000 lb 20ft NTEP III SST, Scale,Floor Roughdeck 5x7HPSS-10K 5ftx7ftx3-1/2 10,000 lb 20ft NTEP III SST, Scale,Floor Roughdeck 5x7HPSS-5K 5ftx7ftx3-1/2 5,000 lb 20ft NTEP III SST, Floor Stand,Indicator SST (36.3in), Mounting Plate Set, Roughdeck 1,000-10,000 lb SST, Stainless steel diamond treadplate safety deck, Access ramps, pit frames, bumper guards and portability frames available, Four drilled deck holes for scale height adjustment, Top access junction box, Forklift channel option |
|---|
DigiWeigh Scale Systems offers a wide variety of industrial weigh scale solutions. Our service department is available to help troubleshoot your problems and to assist with scheduled PM/Calibration visits.
