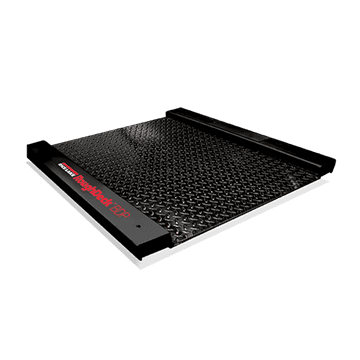

RoughDeck BDP Mild Steel – Stationary Model

$50.92$3,061.90

  • Live siderails
  • Top-access foot adjustment holes
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Diamond tread top plate
  • Alloy steel load cells

When flexibility is required for weighing large items such as barrels and drum pallets, the RoughDeck BDP floor scales’ low profile design and optional hinged access ramps enable effortless loading and unloading. Live side rails permit items exceeding the standard scale dimensions to be weighed accurately where they sit on the scale. Design feature options include treaded mild steel or smooth stainless steel top plates, and environmentally sealed or welded-seal load cells catering to a vast range of application conditions.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

RoughDeck BDP Floor Scale Specifications

End Load Capacity:
1,000 lb: 100% full scale
2,500 lb: 80% full scale

Cable Length:
10 ft (3 m)

Junction Box:
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card

Welding:
Stitch

Threaded Eyebolt:
Hole (1/2-13 NC) located in center of deck for easy lifting

Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

Approvals:
NTEP CC 03-060, Class III 2,500 d
Measurement Canada AM-5578
(500 kg) Class III 2,500 d
(1,000 kg) Class III 2,000 d

Model

Scale, Barrel Roughdeck BDP 30x31x1.625 1,000 lb steel painted, Scale, Barrel Roughdeck BDP 30x31x1.625 2,500 lb steel painted, Scale, Barrel Roughdeck BDP 36x37x1.625 1,000 lb steel painted, Scale, Barrel Roughdeck BDP 36x37x1.625 2,500 lb steel painted, Ramp, Roughdeck BDP 2.5ftW x 1ftL 1,000-2,500lb Steel Painted Treaded Top Plate Stationary, Ramp, Roughdeck BDP 3ftW x 1ftL 1,000-2,500lb Steel Painted Treaded Top Plate Stationary, Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted, Floor Stand,Indicator Steel Painted (36.3in), Floor Stand,Indicator Steel Painted (48in.), Backstop, Roughdeck BDP 30 Inches Wide Steel Painted Mounting Hardware Included, Backstop, Roughdeck BDP 36 Inches Wide Steel Painted Mounting Hardware Included, Mild steel deck with RL32018S IP66 stainless steel (cFMus approved) load cells, and hardware, Mild steel deck with RL32218S-HE hermetically sealed IP69K stainless steel cFMus approved load cells and hardware
