$67.00 – $25,687.80
What can’t be seen can lead to devastating consequences—both for production facilities and consumers. For ultimate microbial resistance in sanitary environments, Rice Lake’s RoughDeck QC-X washdown floor scale is designed to safeguard against microscopic bacteria in food processing, pharmaceutical and chemical applications.
The RoughDeck QC-X base is composed of solid, stainless steel, vertical plates—providing superior protection against bacteria and mold growth. The rugged design incorporates 304 stainless steel construction and four welded-seal load cells with PTFE cable for steam cleaning and washdown areas. The RoughDeck QC-X is designed to create ideal cleaning conditions for strict sanitation requirements.
When protection matters most, Rice Lake’s QC-X is the ideal solution for strict sanitary washdown environments.
The scale base is built from solid, stainless steel plates. The absence of tubes or channels means peace of mind when cleaning the scale. Continuous welds on the solid base plates follow strict sanitary design principles.

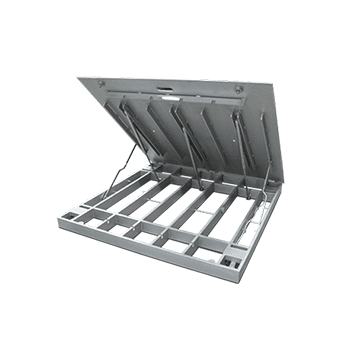

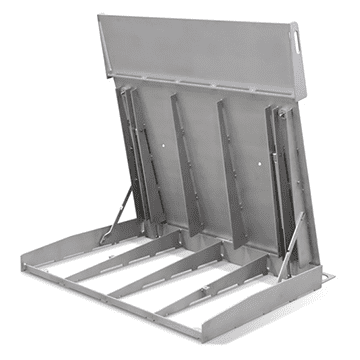

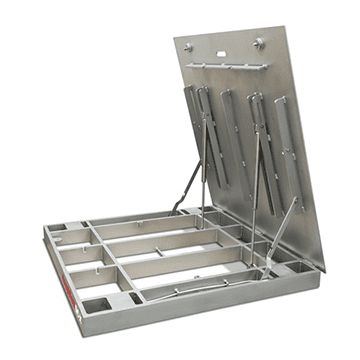

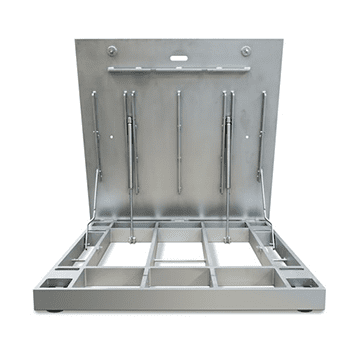

The top plate opens 75 degrees, allowing the entire scale interior to be washed and inspected.

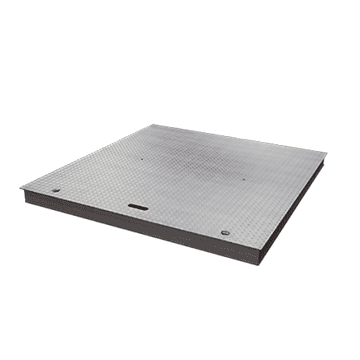

An allover 304 stainless steel construction provides rugged strength in the toughest food, pharmaceutical or chemical environments. A choice of a smooth top plate deck or a diamond treadplate deck (for extra traction) allows further application accommodation.
| End Load Capacity: 100% full scale at 5,000 lb 80% full scale at 10,000 lb Cable Length: Scale Weldment: |
Junction Box: TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card Welding: Threaded Eyebolt: |
Warranty (limited): Weldment: Five-year Load cells: Two-year All other components: One-year Approvals: |

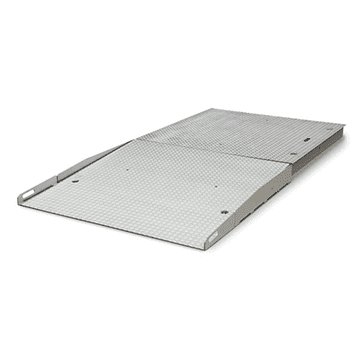

| Model | Scale,Roughdeck QC-X 4x4HPQC-X-5K 4ftx4ftx4-5/8 5000lb 30ft Cable Diamond Top Plate, Scale,Roughdeck QC-X 4x4HPQC-X-10K 4ftx4ftx4-5/8 10,000lb 30ft Cable Diamond Top Plate, Scale,Roughdeck QC-X 5x5HPQC-X-5K 5ftx5ftx4-5/8 5000lb 30ft Cable Diamond Top Plate, Scale,Roughdeck QC-X 5x5HPQC-X-10K 5ftx5ftx4-5/8 10,000lb 30ft Cable Diamond Top Plate, Scale,Roughdeck QC-X 4x4HPQC-X-5K 4ftx4ftx4-5/8 5000lb 30ft Cable Smooth Top Plate, Scale,Roughdeck QC-X 4x4HPQC-X-10K 4ftx4ftx4-5/8 10,000lb 30ft Cable Smooth Top Plate, Scale,Roughdeck QC-X 5x5HPQC-X-5K 5ftx5ftx4-5/8 5000lb 30ft Cable Smooth Top Plate, Scale,Roughdeck QC-X 5x5HPQC-X-10K 5ftx5ftx4-5/8 10,000lb 30ft Cable Smooth Top Plate, Floor Stand,Indicator SST (36.3in), Mounting Plate Set, Roughdeck 1,000-10,000 lb SST, Pit Frame,Roughdeck QC-X 4ftW x 4ftL x 5DP SST, Pit Frame,Roughdeck QC-X 5ftW x 5ftL x 5DP SST, Ramp,Roughdeck QC-X 4ftW x 3ft Approach x 4.625in diamond top plate, designed to fit hinge/handhole side of scale, clean out style, Ramp,Roughdeck QC-X 4ftW x 4ft Approach x 4.625in Diamond Top Plate, Designed To Fit Hinge/Handhole Side Of Scale, clean out style, Ramp,Roughdeck QC-X 5ftW x 3ft Approach x 4.625in diamond top plate, designed to fit hinge/handhole side of scale, clean out style, Ramp,Roughdeck QC-X 5ftW x 4ft Approach x 4.625in diamond top plate, designed to fit hinge/handhole side of scale, clean out style, Ramp,Roughdeck QC-X 4ftW x 3ft Approach x 4.625in diamond top plate, designed to fit side of scale, clean out style, Ramp,Roughdeck QC-X 4ftW x 4ft Approach x 4.625in diamond top plate, designed to fit side of scale, clean out style, Ramp,Roughdeck QC-X 5ftW x 3ft Approach x 4.625in diamond top plate, designed to fit side of scale, clean out style, Ramp,Roughdeck QC-X 5ftW x 4ft Approach x 4.625in diamond top plate, designed to fit side of scale, clean out style |
|---|
DigiWeigh Scale Systems offers a wide variety of industrial weigh scale solutions. Our service department is available to help troubleshoot your problems and to assist with scheduled PM/Calibration visits.
