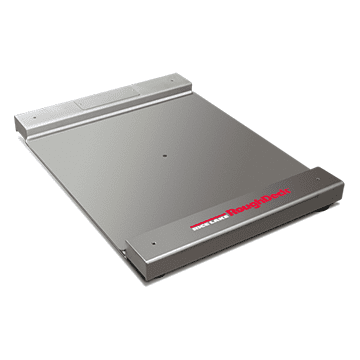

RoughDeck BDP Stainless Steel – Stationary Model


  • Live siderails
  • Top-access foot adjustment holes
  • Four adjustable stainless steel SUREFOOT™ support feet
  • Smooth top plate
  • Stainless steel, IP66 load cells

When flexibility is required for weighing large items such as barrels and drum pallets, the RoughDeck BDP floor scales’ low profile design and optional hinged access ramps enable effortless loading and unloading. Live side rails permit items exceeding the standard scale dimensions to be weighed accurately where they sit on the scale. Design feature options include treaded mild steel or smooth stainless steel top plates, and environmentally sealed or welded-seal load cells catering to a vast range of application conditions.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

RoughDeck BDP Stainless Steel Specifications

End Load Capacity:
1,000 lb: 100% full scale
2,500 lb: 80% full scale

Cable Length:
10 ft (3 m)

Scale Weldment:
AISI304L, glass bead blasted for even appearance

Junction Box:
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card

Stitch, consult factory if continuous is required

Threaded Eyebolt:
Holes are 1/2-13 threaded for lifting scale

Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

NTEP CC 03-060, Class III 2,500 d
Measurement Canada AM-5578
(500 kg) Class III 2,500 d
(1,000 kg) Class III 2,000 d


Scale, Barrel Roughdeck BDP 30x31x1.625 1,000 lb SST, Scale, Barrel Roughdeck BDP 30x31x1.625 2,500 lb SST, Scale, Barrel Roughdeck BDP 36x37x1.625 1,000 lb SST, Scale, Barrel Roughdeck BDP 36x37x1.625 2,500 lb SST, Mounting Plate Set, Roughdeck 1,000-10,000 lb SST, Floor Stand,Indicator SST (36.3in), Backstop, Roughdeck BDP 30 Inches Wide SST Mounting Hardware Included, Backstop, Roughdeck BDP 36 Inches Wide SST Mounting Hardware Included, Stainless steel deck with RL32218S-HE hermetically sealed IP69K stainless steel (cFMus approved) load cells and hardware, Stainless steel diamond treadplate safety deck
