RoughDeck® QC Quick Clean Floor Scale

$455.60$26,398.00

  • Rugged washdown design
  • Smooth, 304 stainless steel top deck
  • Rigid 304 stainless steel tube frame
  • Meets HACCP requirements
  • Manual drop-in-place safety bar
  • Four stainless steel, hermetically sealed, IP69K shear beam load cells
  • 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
  • Remote junction box can be mounted up to 10 ft away from the scale
  • 3/16 in thick smooth top plate
  • 4 adjustable stainless steel SUREFOOT™ support feet

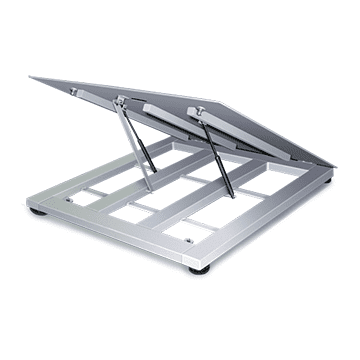

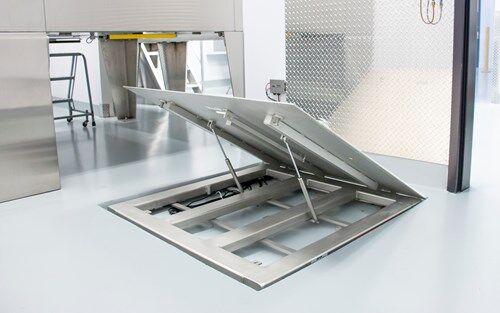

The RoughDeck QC is a hostile environment, stainless steel floor scale customized for food, chemical and other demanding washdown applications. The RoughDeck QC’s exclusive gas-shock design provides easy lifting and soft closing of the 3/16 inch top plate. Also included is a manual drop-in-place support bar for use during extended underdeck cleaning.

All of our floor scales, unless specified otherwise, are built with lifting holes to assist our dealers during installation, or to later service the scales. The lifting holes are not the same size on all of our scales and in the PDF on the Resources tab, you will find a chart that lists the standard size and quantity of eyebolts needed for our scales.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

RoughDeck QC Floor Scale Specifications

End Load Capacity:
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

Scale Weldment:
AISI304L, glass bead blasted for even appearance

Junction Box:
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card

Welding:
Stitch, consult if continuous is required

Threaded Eyebolt Hole:
1/2-20 NF located in center of deck for easy lifting

Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

Approvals:
NTEP CC 92-001, Class III 5,000 d

Model

Scale,Floor Roughdeck QC 2.5×2.5HPQC-2K 2-1/2ftx2-1/2ftx3-1/2 2000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 3x3HPQC-2K 3ftx3ftx3-1/2 2000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 4x4HPQC-2K 4ftx4ftx3-1/2 2000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 4x4HPQC-5K 4ftx4ftx3-1/2 5000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 4x4HPQC-10K 4ftx4ftx4-1/2 10000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 4x5HPQC-2K 4ftx5ftx3-1/2 2000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 4x5HPQC-5K 4ftx5ftx4-1/2 5000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 4x5HPQC-10K 4ftx5ftx4-1/2 10000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 4x6HPQC-2K 4ftx6ftx4-1/2 2000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 4x6HPQC-5K 4ftx6ftx4-1/2 5000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 4x6HPQC-10K 4ftx6ftx5-1/2 10000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 5x5HPQC-2K 5ftx5ftx4-1/2 2000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 5x5HPQC-2K 5ftx5ftx4-1/2 2000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 5x5HPQC-10K 5ftx5ftx4-1/2 10000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 5x7HPQC-2K 5ftx7ftx5-1/2 2000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 5x7HPQC-5K 5ftx7ftx5-1/2 5000lb 20ft NTEP III SST HE, Scale,Floor Roughdeck QC 5x7HPQC-10K 5ftx7ftx5-1/2 10000lb 20ft NTEP III SST HE, Ramp,Roughdeck QC 2-1/2ftW x 4ftL x 3-1/2H 2-1/2 x 2-1/2 x 2K Roughdeck QC SST, Ramp,Roughdeck QC 3ftW x 4ftL x 3-1/2H 3 x 3-2K Roughdeck QC SST, Ramp,Roughdeck QC 4ftW x 4ftL x 3-1/2H 4×4-2k 4×4-5k 4×5-2k Roughdeck QC SST, Ramp,Roughdeck QC 4ftW x 4ftL x 4-1/2H 4×4-10K, 4×5-5K, 4×6-2K, 4×6-5K Roughdeck QC SST, Ramp,Roughdeck QC 4ftW x 4ftL x 4-1/2H 4×5-10K Roughdeck QC SST, Ramp,Roughdeck QC 4ftW x 5ftL x 5-1/2H 4×6-10K Roughdeck QC SST, Ramp,Roughdeck QC 5ftW x 4ftL x 4-1/2H 5×5-2K, 5×5-5K Roughdeck QC SST, Ramp,Roughdeck QC 5ftW x 4ftL x 4-1/2H 5×5-10K Roughdeck QC SST, Ramp,Roughdeck QC 5ftW x 5ftL x 5-1/2H 5×7-2K, 5×7-5K, 5×7-10K Roughdeck QC SST, Pit Frame,Roughdeck QC 2-1/2ftW x 2-1/2ftL x 4DP 2-1/2×2-1/2-2k Roughdeck QC SST, Pit Frame,Roughdeck QC 3ftW x 3ftL x 4DP 3×3-2k Roughdeck QC SST, Pit Frame,Roughdeck QC 4ftW x 4ftL x 4DP 4×4-2k, 4×4-5k Roughdeck QC SST, Pit Frame,Roughdeck QC 4ftW x 4ftL x 5DP 4×4-10k Roughdeck QC SST, Pit Frame,Roughdeck QC 4ftW x 5ftL x 4DP 4×5-2k Roughdeck QC SST, Pit Frame,Roughdeck QC 4ftW x 5ftL x 5DP 4×5-5k Roughdeck QC SST, Pit Frame,Roughdeck QC 4ftW x 5ftL x 5DP 4×5-10k Roughdeck QC SST, Pit Frame,Roughdeck QC 4ftW x 6ftL x 5DP 4×6-2k, 4×6-5k Roughdeck QC SST, Pit Frame,Roughdeck QC 4ftW x 6ftL x 6DP 4×6-10k Roughdeck QC SST, Pit Frame,Roughdeck QC 5ftW x 5ftL x 5DP 5×5-2k, 5×5-5k Roughdeck QC SST, Pit Frame,Roughdeck QC 5ftW x 5ftL x 5DP 5×5-10k Roughdeck QC SST, Pit Frame,Roughdeck QC 5ftW x 7ftL x 6DP 5×7-2k, 5×7-5k, 5×7-10k Roughdeck QC SST, Floor Stand,Indicator SST (36.3in)
