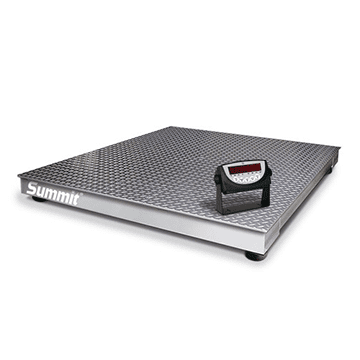

Summit 3000 Floor Scale and 120 Plus Indicator Package
Summit 3000 Floor Scale and 120 Indicator Package
Summit 3000 Floor Scale and 120 Plus Indicator Package
Summit 3000 Floor Scale and 120 Indicator Package

Summit 3000 Floor Scale and 321 Indicator Package

$50.92 – $3,276.30

  • Package includes: Summit 3000 4 ft × 4 ft × 3.625 in floor scale, 20 ft of EL147 load cell cable with quick disconnect, and 321 indicator
  • Package configured and factory calibrated for 5,000 divisions

Scale

  • Four NTEP Certified alloy steel, shear beam load cells
  • Top-access junction box
  • Rugged diamond safety treadplate steel deck
  • Four adjustable rigid polyurethane rubber feet, 3 in (76 mm) diameter
  • Signal trim summing board housed in ABS enclosure
  • Threaded eyebolt hole (1/2–20NF) located in the center of the deck for easy lifting
Indicator
  • Large 0.8 in backlit LCD display
  • Five-button operation
  • Full front panel digital calibration and configuration

Our Summit 3000 floor scale and indicator package is an economical choice for many industrial weighing tasks, with a durable low-profile deck that fits well into many material handling environments. This Legal for Trade scale comes with our easy-to-use and straightforward model 321 digital weight display and 20 feet of load cell cable.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

Summit 3000 Floor Scale Specifications

End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty (limited):
Weldment and load cells two-years, all other components one-year

 Approvals:
NTEP CC 92-001, Class III 5,000 d
Measurement Canada AM-5530, Class III 5,000 d (2,500 kg, 5,000 kg)

 321 Indicator Specifications

Power:
Line voltages: 115 or 230 VAC
Frequency: 50 or 60 Hz

Communication Port:
EDP port: Full duplex RS-232
Printer port: Output-only RS-232 or active 20 mA current loop
Both ports: 9600, 4800, 2400, 1200, 600, 300bps;
Seven or eight data bits; even, odd or no parity

 Display:
0.8 in (20 mm), six-digit red LED display, seven-segment digits

Annunciators:
Center of zero, stand still, gross, net, lb, kg, oz, g

Keys/Buttons:
Five-key flat membrane panel, tactile feel

 Rating/Material:
Enclosure: heavy gauge ABS

Warranty:
One-year limited

Approvals:
NTEP CC 03-059, Class III/IIIL 10,000d
Measurement Canada AM-5517, Class III/IIIHD 10,000d
EU Test Certificate TC7028 (120) Class III, 10,000d
CE marked
Model

Scale PKG, Summit 3000 4×4-5k w/120 Indicator AC (115VAC wall adapter) Factory Calibrated, Scale PKG, Summit 3000 4×4-10k w/120 Indicator AC (115VAC wall adapter) Factory Calibrated, Scale PKG, Summit 3000 4×4-2500KG w/120 Indicator AC (115VAC wall adapter) Factory Calibrated (Measurement Canada Approved), Scale PKG, Summit 3000 4×4-5000KG w/120 Indicator AC (115VAC wall adapter) Factory Calibrated (Measurement Canada Approved), Mounting Plate Set, Summit 3000 2,000-10,000lb Steel Painted, Floor Stand,Indicator Steel Painted (36.3in), Floor Stand,Indicator Steel Painted (48in.)
