$1,768.80 – $5,467.20

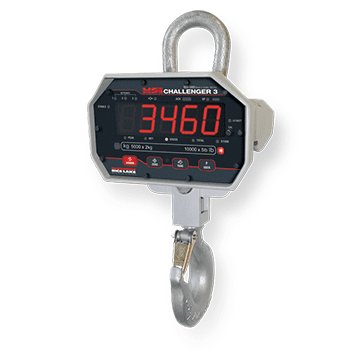

The MSI-3460 with ScaleCore measurement module provides industry-leading weighing features of previous Challenger designs plus much more. Long-range viewing is enhanced with a larger 1.5 inch (38 millimeter) ultra-bright LED digital display and resolution settings of up to 10,000 divisions for precise 0.1 percent loading accuracy. Product operating time is extended to over 80 plus hours with a single six-volt rechargeable battery. The original signature Challenger packaging has been upgraded to NEMA Type 4/IP65 levels. Manufactured in the USA in strict compliance with the highest safety standards, Challenger continues to sustain a minimum 200 percent safe and 500 percent ultimate load ratings.
A ScaleCore electronics retrofit kit is available for upgrading existing MSI-3260 or MSI-3360 Challengers to new generation MSI-3460.
| Accuracy: ± (0.1% +1 d) of applied load Resolution: Enclosure: Lifting Eye & Hook: Design Overload: Functions: |
Display: 5-digit, 1.5 in (38 mm) LED with programmable brightness control Displayable Units: Annunciators: Power: Operating Time: Temperature Range: Auto-Off Mode: |
Auto Sleep Mode: Power down during non-use and power up with weight change or any key press Service Counters: Calibration: Filtering: Warranty: Approvals: |
| Model | MSI-3460 250/500 Lb Final Assembly, Challenger 3 Crane Scale. NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order., MSI-3460 1K/2K Lb Final Assembly, Challenger 3 Crane Scale. NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order., MSI-3460 5K/10K Lb Final Assembly, Challenger 3 Crane Scale. NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order, MSI-3460 15,000 Lb Final Assembly, Challenger 3 Crane Scale. Standard Features Include: 5-Digit LED Display, Top Lifting Shackle, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order., MSI-3460RF 250/500# Final Assembly, Challenger 3 Crane Scale With Optional RF Capabilites For Communication With An MSI-8000 Remote Display (MSI-8000 Sold Seperately). NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order., MSI-3460RF 1K/2K# Final Assembly, Challenger 3 Crane Scale With Optional RF Capabilites For Communication With An MSI-8000 Remote Display (MSI-8000 Sold Seperately). NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order., MSI-3460RF 5K/10K# Final Assembly, Challenger 3 Crane Scale With Optional RF Capabilites For Communication With An MSI-8000 Remote Display (MSI-8000 Sold Seperately). NTEP Approved. Standard Features Include: 5-Digit LED Display, Top Lifting Eye, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order., MSI-3460RF 15K# Final Assembly, Challenger 3 Crane Scale With Optional RF Capabilites For Communication With An MSI-8000 Remote Display (MSI-8000 Sold Seperately). Standard Features Include: 5-Digit LED Display, Top Lifting Shackle, And Bottom Non-Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At Time Of Order., MSI-3460WIFI 250/500# FA Assembly, Challenger 3 Crane Scale With Optional WIFI. For Communication With Scaleconnect App. NTEP Approved. Standard Features Include 5-Digit LED Display, Top Lifting Eye, And Bottom Non Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At The Time Of Order., MSI-3460WIFI 1/2K Final Assembly, Challenger 3 Crane Scale With Optional WIFI. For Communication With Scaleconnect App. NTEP Approved. Standard Features Include 5-Digit LED Display, Top Lifting Eye, And Bottom Non Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At The Time Of Order., MSI-3460WIFI 5/10K Final Assembly, Challenger 3 Crane Scale With Optional WIFI. For Communication With Scaleconnect App. NTEP Approved. Standard Features Include 5-Digit LED Display, Top Lifting Eye, And Bottom Non Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At The Time Of Order., MSI-3460WIFI 15K Final Assembly, Challenger 3 Crane Scale With Optional WIFI. For Communication With Scaleconnect App. NTEP Approved. Standard Features Include 5-Digit LED Display, Top Lifting Eye, And Bottom Non Bearing Swivel Hook, Selectable Units Key. A Six-Volt Rechargeable Battery And Universal Charger Are Also Included. Capacity Must Be Specified At The Time Of Order. End User will be required to provide internal I.T support for WIFI equiped scales., MSI-8000 Remote Display RF Handheld (Requires an MSI Crane Scale or MSI-7300 equipped with a RF modem), FINAL ASSY REMOTE DISPLAY AC POWER 8000HD, 8004HD Display AC, RedGrn 1.5in Dual Color LED Display, 85~264VAC |
|---|
DigiWeigh Scale Systems offers a wide variety of industrial weigh scale solutions. Our service department is available to help troubleshoot your problems and to assist with scheduled PM/Calibration visits.
