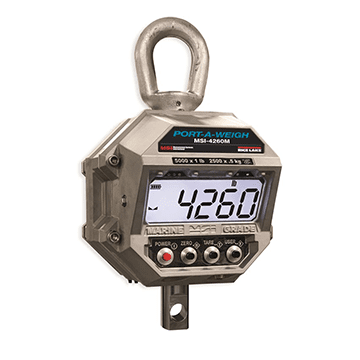

MSI-4260M Port-A-Weigh Marine Crane Scale


  • LCD display
  • IP66 cast aluminum
  • Top lifting eye with lower link interface
  • Battery operated, six (6) D cell 1.5V alkaline batteries
  • NTEP Certified configuration

(Contact MSI for application consultation)

  • Rugged remote control (control for On/Off, Zero, Tare and other functions)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD, MSI-8004HD, TranSend and LaserLight2 remote display. Typically 100 to 300 ft, line of sight; for longer range consult factory.
  • Wi-Fi communication is available for specialty applications

The MSI-4260M Port-a-Weigh crane scale is the most robust scale on the market for marine and industrial weighing, able to capture weight with ± 0.1% accuracy with a standard 5,000 lb capacity.

An IP66 aluminum enclosure stands up to moisture in marine and washdown environments. Sensitive electronic components are sealed off and well-protected, including the MSI-4260M’s sleek and vibrant LCD display. Featuring programmable brightness control, the display ensures users have access to the weight data they need—in any light condition.

In highly regulated marine applications, meeting safety requirements is crucial. The NTEP-Certified MSI-4260M features a 200% Safe and 500% Ultimate Safety Factor, minimizing the risk of accidents from overloading. The MSI-4260M is built to perform reliably for every catch with extended battery life up to 1,000 hours. A brightly lit battery display indicates when the unit is at 25%, 50%, 75% and full power. Timed auto-off and auto-sleep modes conserve power when the unit is not in use, meaning users are never surprised by a dead battery.

Choose equipment that works as hard as you do with the MSI-4260M crane scale, designed with dockside weighing in mind.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

MSI-4260M Marine Specifications

± (0.1% +1d) of applied load

Max NTEP Approved Class III: 2,500 Divisions
Max NTEP Approved Class IIIL: 5,000 Divisions
Max Non NTEP Approved: 10,000 Divisions

IP66 cast aluminum

Lifting Eye, Link & Hook:
Top lifting eye with lower link interface

Design Overload:
200% Safe / 500% Ultimate

Power: Turns Unit ON or OFF
Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration),
Tare: Tares applied load and displays weight in Net mode
User: Programmable as test, total, unit, peak hold, net/gross, view total and print

Five-digit,  1.75in (44.5 mm) LCD with programmable brightness control

Displayable Units:
Pounds or kilograms selectable

COZ, Battery Level, Net, Total, lb/kg, Stability, RF and Setpoint LEDs

Battery operated, six (6) D cell 1.5 V alkaline batteries

Operating Time:
Up to 1,000 hours of battery life with typical use, less with RF modem option

Temperature Range:
Operating: -20° F to 122° F (-28 °C to 50 °C)
Certified: 14 °F to 104 °F (-10 °C to 40 °C)

Auto-Off Mode:
Powers off after the scale is not used for the set time (in minutes); 15, 30, 45, 60 or OFF selectable

Auto Sleep Mode:
Power down during non-use after the set time (in minutes) and powers up with weight change or any key press; 5, 15, 30 or OFF selectable

Service Counters:
Counts number of lifts over percentage of capacity and lifts over capacity

Digital (procedure initiated by calibration switch)

OFF, LO, HI-1 or HI-2 selectable

Radio Link:
802.15.4 at 2.4 GHz

Radio Effective Range:
Typically 100 to 300 ft line of sight

One-year limited

NTEP CC 19-122: 500 to 70,000 lb
Measurement Canada AM-6198: 500 to 5,000 lb


MSI-4260M 5K SHACKLE INTFC NO RF D-CELL BATTERIES, MSI-4260M 5K SHACKLE INTFC 802.15.4 D-CELL BATTERIES, MSI-8000 Remote Display RF Handheld (Requires an MSI Crane Scale or MSI-7300 equipped with a RF modem), MSI-Rugged Remote Control Non-CE for Products with XBEE Radios, FINAL ASSY REMOTE DISPLAY AC POWER 8000HD, MSI CRANE CART (48.50), 4in LASERLIGHT2 MSI RF Includes ScaleCore RF Kit and Tilt Mounting Bracket, 6in LASERLIGHT2 MSI XBEE RF Includes ScaleCore RF Kit and Tilt Mount Bracket, MSI-4260B WIFI Opt. Kit. WIFI Modem Will Allow For Connectivity With Scaleconnect App, 8004HD Display AC, RedGrn 1.5in Dual Color LED Display, 85~264VAC
