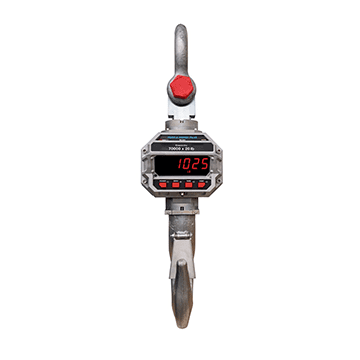

MSI-9600HT Hi-Torque Port-A-Weigh Plus
MSI-9600HT Hi-Torque Port-A-Weigh Plus

MSI-9600HT Hi-Torque Port-A-Weigh Plus

Call for Price

  • LED display and annunciators
  • Top shackle (sold separately)
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
  • Hi-torque load train designed for use with powered rotation

Options
(Contact MSI for application consultation)

  • Top shackle
  • Rugged remote control (control for On/Off, Zero, Tare and other functions)
  • Anti-heat shielding for high-temperature applications
  • Substitute bottom hook with shackle
  • Oversized top or shackle
  • Oversized bottom hooks
  • Universal direct power supply
  • Wi-Fi communication is available for specialty applications
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend and LaserLight2 remote display
  • Typically 100 to 300ft, line of sight; for longer range consult factory Low headroom top adapter
  • Audible alarm
  • Custom top and bottom interfaces
SKU: N/A Category: Tag:
Guaranteed Safe Checkout

MSI-9600HT Hi-Torque Port-A-Weigh Plus Specifications

Accuracy:
10,000 to 120,000 lb: ± (0.1% +1 d) of capacity
200,000 lb: ± (0.2% +1 d) of capacity

Resolution:
3,000 to 5,000 d standard (Up to 10,000 d available)

Enclosure:
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum

Lifting Eye, Shackle & Hook:
Shackle is optional and Crosby® fixed hook provided as standard

Design Overload:
200% Safe / 500% Ultimate (except where noted)

 Functions:
Power: Turns unit on or off
Zero: Zeros applied load up to 100% of capacity
Tare: Tares applied load and displays weight in net
Mode F1: Programmable as test, units, net/gross, total and peak hold

Display:
6 digit, 1.5 in (38 mm) LED with programmable brightness control

Displayable Units:
Pounds or kilograms selectable

Power:
12 Volt rechargeable battery, 115/230 VAC battery charger included

 Operating Time:
Up to 30 hours between charging with typical use

Temperature Range:
Operating: 11 °F to 131 °F (-10 °C to 40 °C)

Calibration:
Digital

Filtering:
OFF, LO, HI-1 or HI-2 selectable

Radio Link:
802.15.4 at 2.4 GHz

Radio Link Effective Range:
Typically 100 to 300 ft line of sight

Warranty:
One-year limited
Model

MSI-9600HT 10K FINAL ASSY TORQUE RESISTANT, MSI-9600HT 30K FINAL ASSY TORQUE RESISTANT, MSI-9600HT 70K FINAL ASSY TORQUE RESISTANT, MSI-9600HT 100K Shear Web Final Assy Torque Resistant, MSI-9600HT 200K Shear Web Final Assy.Torque Resistant
