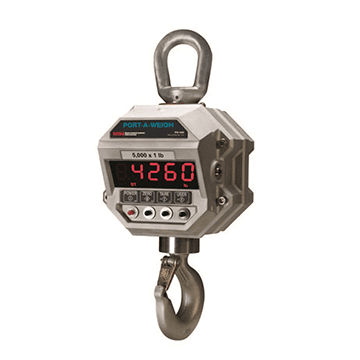

MSI-4260 Port-A-Weigh Industrial Crane Scale

$6,641.04$31,739.24

  • LED display (3 colors – programmable)
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
  • NTEP Certified configuration, Measurement Canada Certified Configuration

Options
(Contact MSI for application consultation)

  • Rugged remote control (control for On/Off, Zero, Tare and other functions)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend and LaserLight2 remote display. Typically 100 to 300 ft, line of sight; for longer range consult factory
  • Anti-heat shielding for high temperature applications
  • Substitute bottom swivel hook with shackle
  • Oversized top lifting eye or shackle
  • Oversized bottom hook
  • Universal direct power supply; 85 to 265 VAC, 47 to 440 Hz / 130 to 300 VDC
  • Wi-Fi communication is available for specialty applications and for use with the ScaleCore Webserver
  • Low headroom top adapter
  • Audible alarm
  • Custom top and bottom interfaces
  • Factory Mutual and ATEX approved intrinsically safe models available

A Wireless, Digital Crane Scale

The Industry Standard for Overhead Weighing

After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions. For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 meets or exceeds all industrial safety requirements, including OSHA, ANSI and ASME and is an economical choice for many bridge crane, foundry, and in-process material handling needs.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

MSI-4260 Port-A-Weigh Specifications

Accuracy:
± 0.1% +1d of applied load

Resolution:
2,000 to 5,000 d standard (Up to 10,000 d available)

Enclosure:
NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum

Lifting Eye, Shackle & Hook:
Crosby® or equal with 360° thrust-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate (except where noted)

Functions:
Power: turns unit ON or OFF
Zero: zeros applied load up to 100% of capacity (limited range in NTEP configuration)
Tare: tares applied load and displays weight in net mode
F1: Programmable as TEST, UNITS, NET/GROSS, TOTAL & PEAK HOLD

Display:
Five digit, 1.2 in (30 mm) LED with programmable brightness control
4 Color Schemes: Red, orange, green and red/green

Displayable Units:
Pounds or kilograms selectable

Annunciators:
COZ, Net, Gross, Total, Peak, Low Battery, lb/kg, Motion, Setpoints

Power:
12 Volt rechargeable battery (115/230 VAC battery charger is included)

Operating Time:
Up to 200 hours between charging with typical use, less with optional RF modem

Temperature Range:
Operating: -40 °F to 122 °F (-40 °C to 50 °C)
Certified: 14 °F to 104 °F (-10 °C to 40 °C)

Auto-Off Mode:
Select for 15, 30, 45 minutes, 1 hour or off

Auto Sleep Mode:
Power down during non-use and power up with weight change or any key press

Service Counters:
Counts number of lifts over percentage of capacity and lifts over capacity

Calibration:
Digital

Filtering:
OFF, LO, HI-1, HI-2 selectable

Warranty:
One-year limited

Approvals:
NTEP CC 19-122: 500 to 70,000 lb
Measurement Canada AM-6198: 500 to 5,000 lb

Model

MSI-4260C 500 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE, MSI-4260C 2,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE, MSI-4260C 5,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE, MSI-4260C 10,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE, MSI-4260C 20,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE, MSI-4260C 30,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE, MSI-4260C 50,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE, MSI-4260C 70,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE, MSI-4260C 100,000 lb Swvl Hook 12V Battery LED Dual Color Display Non-CE
