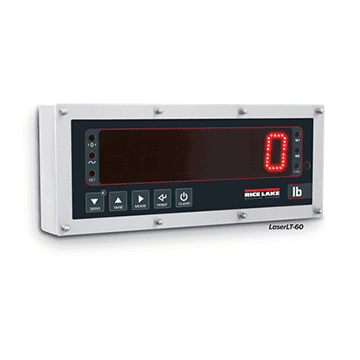

LaserLT-60 and LaserLT-100 Remote Displays/Weight Indicator

$80.40$2,211.00

  • LED display
  • Auto Learn mode, weight value only
  • Manual configuration for format length, weight location, termination character
  • Manual Configuration mode for reading weight, variables and bitmap bytes
  • Parameters for motion, overload, decimal point, net character, COZ
  • Status LEDs for Zero, Motion, Net, Unit 1, Unit 2
  • Integrated five-key waterproof keypad with configurable scale commands
  • Adjustment for six levels of brightness through the keypad
  • Includes removable back wall mount bracket
  • Fitted with anti-condensation air valve to regulate humidity and pressure

Stainless Steel Remote Displays

Use the LaserLT-60 and LaserLT-100 remote displays to clearly display weight information at distances up to 150 feet. The displays are ideal for applications where weight needs to be viewed from a distance. Both the LaserLT-60 and the LaserLT-100 operate with a range of weight indicators to easily integrate with any system. The incoming format can be interfaced through a set function or with a manual setup.

The LaserLT-60 and LaserLT-100 are designed for indoor, outdoor and washdown applications. With adjustable brightness, the six-digit, seven-segment character LED displays are easy to read even in direct sunlight.

The stainless steel enclosure is weathertight with an IP68 rating. With a standard anti-condensation air valve regulating humidity and pressure, these displays are protected for outdoor use. The LaserLT-60 and LaserLT-100 are easy to mount with standard back brackets or optional side-mounting brackets. The back brackets have a 15-degree angle for clear visibility from below and side-mounting brackets can be used to support, hang or wall mount the remote display.

With SCT-1100 firmware loaded, configurable as a weight indicator

  • Max 10,000 divisions or multi-range
  • A/D 24 bit 4-channel conversion
  • Connect 4 cells with summing or up to 4 independent weighing systems

Indicators are NTEP approved

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

LaserLT-60 and LaserLT-100 Specifications

Power:
AC voltages: 110 to 240 VAC
DC voltages: 12 to 24 VDC


Display:
6-digit, 7-segment discrete red LED lamps, single width
2.4 in (60 mm) or 4 in (100 mm) digit
Decimal/comma indication in any position
Annunciators for NT, Stability, COZ

Maximum Viewing Distance:
LaserLT-60: 2.4 in digit 75 ft (25 m)
LaserLT-100: 4 in digit 100 ft (30 m)

Communication Ports:
RS-232, RS-485

Input Data Format:
Baud rate: 1200 to 115.2 K software selectable
Even parity 7 data bits, or no parity 8 data bits

Update:
Software selectable 1-20/sec

Digital I/O:
Two inputs, 12 to 24 VDC
Two outputs, 48 VAC, 60 VDC max

Rating/Material:
304 stainless steel, IP68

Weight:
10 lb

Operating Temperature:
-40 °F to 120 °F (-40 °C to 49 °C)

Warranty:
One-year limited

Approvals:
CE Marked

Model

DSPL,Remote LaserLT-60 Red 60mm (2.4in) LED,12-24VDC/110-240VAC, SST IP68 Enclosure, DSPL,Remote LaserLT-100 Red 100mm(4in)LED, 12-24VDC/110-240VAC, SST IP68 Enclosure, Indicator,LaserLT-60 Large-Display 60mm (2.4in) LED,12-24VDC/110-240VAC, SST Enclosure, Indicator,LaserLT-100 Large-Display, Red 100mm(4in)LED, 12-24VDC/110-240VAC, SST Encl, Opt Kit,Tilting Brackets Side Mounting Bracket, 2 SST Angled Bracket for LaserLT-100, Visor,LaserLT-100 Display SST Visor
