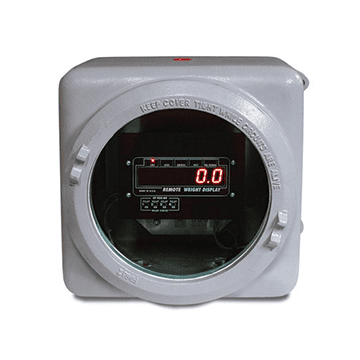

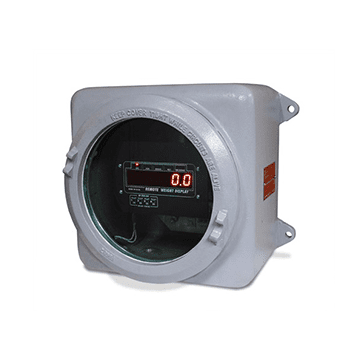

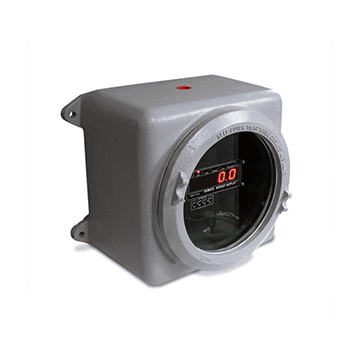

EL232 XPCD Explosion Proof Remote Serial Display


  • 20 mA current loop or RS-232 input
  • Compatible with most Rice Lake indicators
  • NEMA Type 4, 7CD, 9EFG enclosure

The Intrinsically Safe Remote Serial Display

Use a protected remote display within the hazardous area while your indicator remains outside. This RD300 remote display is housed within an explosion proof box—an easy way to make an intrinsically safe device using any existing indicator or controller.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

EL232 XPCD Specifications

Input Voltage:
115 VAC, 60 Hz

NEC Classifications:
Class I, Division 1, Groups C & D; Class II, Division 1,
Groups E, F & G and Class III hazardous environments

Baud Rate:
1200, 2400, 4800 and 9600

20 mA current loop and RS-232
Please consult factory for model numbers and interface requirements

High-intensity, red LED, 0.8 in (20.3 mm) high digits

Approximately 60 lb (27.2 kg)

One-year limited


Remote DSPL,EL232 XPCD 117 VAC RS232/20mA Serial Interface
