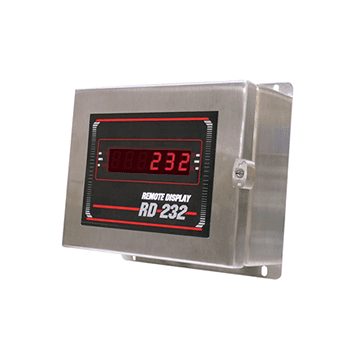

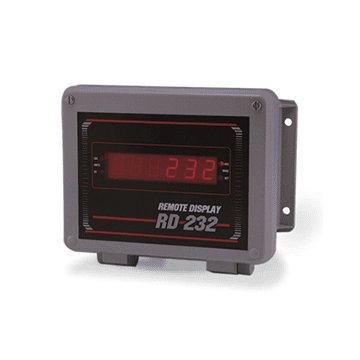

RD-232 Remote Display

$1,273.00$1,675.00

  • AC or DC operation
  • Easy-to-read 0.8 in (20 mm) LED red or green (sunlight visible)
  • Three enclosure types or panel mount kit
  • Four annunciators
  • Full floating decimal point
  • Compatible with a variety of digital weighing indicators; DIP switch selectable intuitive data receiver
    interprets serial strings
SKU: N/A Category: Tag:
Guaranteed Safe Checkout

RD-232 Specifications

Display:
6-digit, 7-segment, 0.8 in (20 mm)
LED
Red (standard intensity)
Green (sunlight visible)

Annunciators:
lb, kg, gross, net

Operating Voltage:
115 VAC, 230 VAC available
DC voltage Range: 6.2-18 VDC

Input Interface:
RS-232, 20 mA active or passive current loop
ASCII compatible

Baud Rate:
Selectable: 300, 600, 1200, 2400, 4800, 9600, 19200

Operating Temperature:
-13 °F to 104 °F (-25 °C to 40 °C)

Rating/Material:
NEMA Type 4X FRP or stainless steel

Weight:
Approximately 5 lb (2.3 kg)
Stainless steel unit, approximately 8 lb (3.6 kg)

Warranty:
One-year limited

Model

DSPL,Remote Wall RD-232 .8in LED 117VAC/12VDC Serial FRP NEMA 4X RED, Display,Remote Wall RD232 .8 LED 117 VAC/12 VDC Serial SST Compact Enclosure RED, DSPL,Remote Wall RD-232 .8 LED 117VAC/12VDC Serial SST NEMA 4 RED, DSPL,Remote RD-232 .8in LED 117VAC/12VDC Serial SST Panel Mount RED, DSPL,Remote Wall RD232 8 in. LED 220 VAC Serial FRP NEMA 4x RED, DSPL,Remote Wall RD-232 G Green .8in LED 117VAC/12VDC Serial FRP NEMA 4X, DSPL,Remote Wall RD-232 G Green .8 LED 117 VAC/12 VDC Serial SST Compact Enclosure, DSPL,Remote Wall RD-232 G Green .8 LED 117VAC/12VDC Serial SST NEMA 4, DSPL,Remote Wall RD-232 G Green .8 in. LED 220 VAC Serial FRP NEMA 4x
