RD-300 Remote Display


  • Easy-to-read 1 in (25 mm) LCD
  • Three enclosure types or panel mount kit
  • Status annunciators
  • AC operation
  • Backlight for dark conditions
  • Compatible with a variety of digital weight indicators; intuitive data receiver automatically interprets serial strings

Durable Remote Scale Display

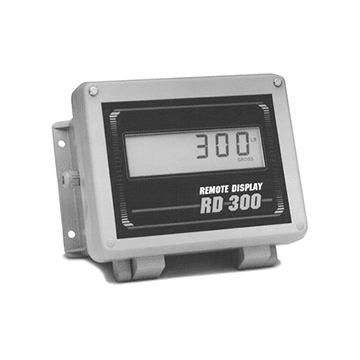

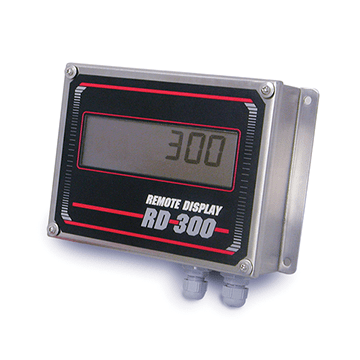

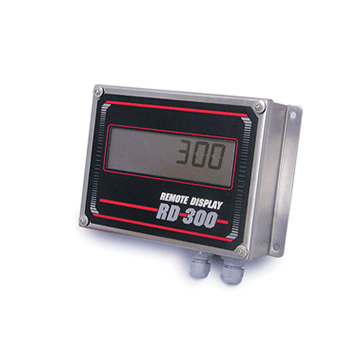

Rice Lake’s RD-300 is well suited for displaying weight data in many indoor areas. This model is housed in a durable FRP (Fiberglass Reinforced Polyester) enclosure with built-in mounting tabs.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

RD-300 Specifications

6-digit, 7-segment, 0.8 in (20 mm) LED

lb, kg, gross, net

Operating Voltage:
115 VAC, 230 VAC available
DC Voltage Range: 6.2-18 VDC

Input Interface:
RS-232, 20 mA active or passive current loop
ASCII compatible

Baud Rate:
Selectable: 300, 600, 1200, 2400, 4800, 9600, 19200

Operating Temperature:
-13 °F to 104 °F (-25 °C to 40 °C)

NEMA Type 4X FRP or stainless steel

Approximately 5 lb (2.3 kg)
Stainless steel unit,
approximately 8 lb (3.6 kg)

One-year limited


Display,Remote Wall RD300 1 Inch LCD w/ Backlight 117 VAC Serial SST Compact Enclosure, DSPL,Remote Wall RD300AFB 1in LCD W/Backlight 117VAC Serial FRP NEMA 4X, DSPL,Remote Wall RD300ASB 1in LCD W/Backlight 117VAC Serial SST NEMA 4X, DSPL,Remote RD300APB 1in LCD W/Backlight 117VAC Serial SST Panel Mount, DSPL,Remote Wall RD300AFB 1 in. LCD W/Backlight 230 VAC Serial FRP NEMA 4x
