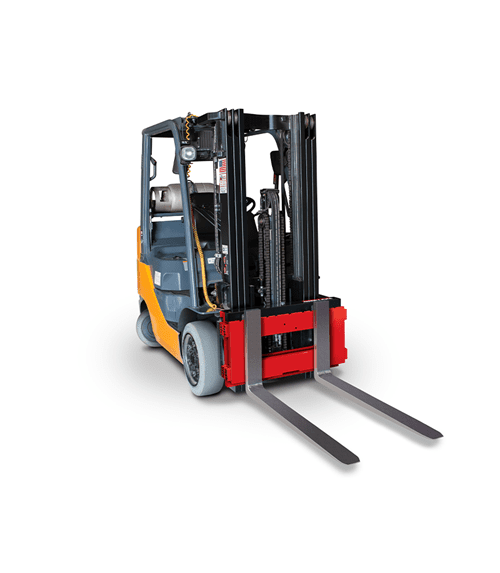

CLS Series Forklift Scale

Scale Carriage

• 28 in (Class II), 5,000 × 5 lbs, NTEP Certified
• 34 in (Class II), 5,000 × 5 lbs, NTEP Certified
• 38 in (Class III), 8,000 × 5 lbs, non-NTEP
• 1-1/2 in thick front and back painted steel plates coupled by four flexures
• Top cleats are welded, pinned and bolted
• Welded centering pin
• Two 5,000 lb s-beam load cells

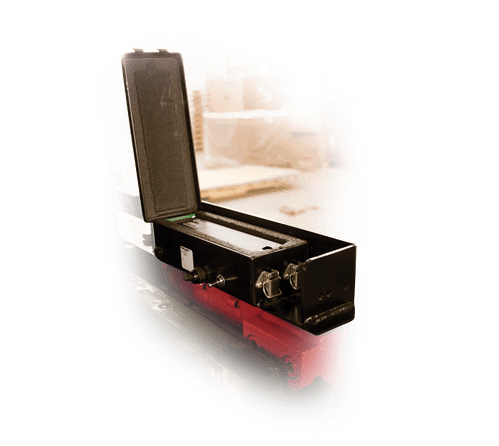

• iQUBE2® junction box with inclinometer
• Molded coiled cable, up to 15 ft uncoiled

Presale Requirements

• Provide completed forklift questionnaire for quotation
• Compatible with most Class II and Class III forklift attachments, consult factory
• Forklift carriage size (Class II, Class III, other)
• Forklift carriage width (is it greater than 36 in?)
• Does the forklift have a load backrest?
• Does the forklift have any existing attachments?
• Supply power for scale instrumentation (12 VDC, other)

Installation Recommendations

• When installing a forklift scale on an electric forklift, static discharge protection must be present on the forklift and install a chassis mount power conditioner to protect scale electronics.
• When installing a forklift scale, OSHA requires the end user to de-rate the lift capacity of the forklift.

Lift Profits, Lower Logistics Expenses

The CLS Series forklift scale mounts directly to most Class II and Class III forklifts, saving material handling processes time and money. The CLS can be paired with a device for weight display through a cable or cableless connection. The weight display can either be a Rice Lake Weighing Systems indicator designed for the CLS or virtually through a device that supports the VIRTUi3 software application. For connection to peripheral equipment, there is also optional USB, Bluetooth and Wi-Fi connection available.
