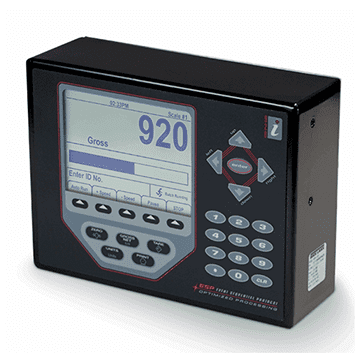

CLS-920i Forklift Scale Display

$13,373.20

  • LCD display
  • Standard program
    • Weight indication
    • Configuration
    • Calibration
    • Diagnostics
  • Front panel calibration
  • On/Off switch to conserve forklift battery life
  • Painted mild steel enclosure
  • Two-piece top cage indicator mounting assembly with vibration mounts
  • Two available RS-232 ports for added options of scanner, Wi-Fi or printer
  • 10 to 60 VDC power supply for use on gas powered or electric forklifts

Flexibility. Intelligence. Programmability.

The CLS-920 is a version of the 920i specifically designed for the CLS forklift scale. It incorporates the flexibility, intelligence and programmability of the 920i in a smaller enclosure with a DC power supply for use on forklifts. The standard program offers weight indication, configuration, calibration and diagnostics specific to the CLS. Customize it for your application with an optional user program.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

CLS-920i Specifications

Power:
Line voltage: 10 to 60 VDC, DC input

Power Consumption:
1.5 A max fused at 5.0

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

Wireless LAN Option:
Contains FCC ID: R68WIPORATG
Range: Up to 328 ft indoors
Operating frequency: ISM 2.4 GH

Warranty:
Two-year limited

Approvals:
NTEP CC 06-074, 5,000 lb only, Class III, 1,000d
Measurement Canada AM-5893, Class III

Model

Scale PKG,CLS920i,iQube2 34in.,Wired,5,000lb,10-60VDC With Truck Connect Load Cells
