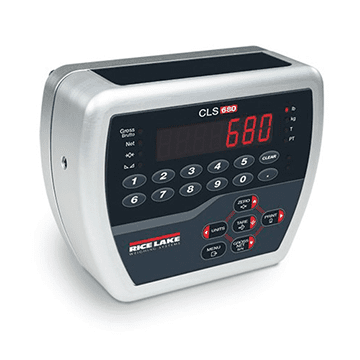

CLS-680 Forklift Scale Display

$1,755.40$2,090.40

  • LED display
  • Battery backed time and date
  • Full numeric keypad
  • Numeric keyed entry allowed for tare
  • Formattable tickets
  • CLS user modes
  • Machined aluminum enclosure with rounded corners
  • Wi-Fi standard
  • Bluetooth® standard
  • Embedded antenna
  • RAM® style mount ability
  • M16 connector, CLS scale connection
  • M12 connector, RS-232
  • Power cable connector
  • PreVent™ breather vent
  • Illuminated power switch

Options

  • Cableless interface to CLS with Zigbee module
  • RAM style mounts
  • Molded M12 serial cables

Designed Specifically for Forklift Scale Applications

With a machined aluminum anodized enclosure, the CLS-680 is ideal for demanding, general-purpose forklift applications. Its compact size is attached with a RAM® mount for flexible positioning and minimal obstruction. Additional features include rounded corners, vibration protection and surge suppression.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

CLS-680 Specifications

Power:
DC voltages: 9 to 36 VDC

Communication Ports:
Two RS-232 full duplex, one reserved for CLS
Bluetooth® SSP
Wi-Fi: Wireless 802.11 b/g/n 2.5 GHz
Zigbee, reserved for CLS cableless option

Annunciators:
10 LED

Display:
Six-digit, 0.5 in tall, seven-segment digits

Keys/Buttons:
Flat membrane panel, tactile feel (18 buttons)

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Industrial: 14 °F to 122 °F (-10 °C to 50 °C)

Dimensions:
(L × W × H)
6.5 × 5.2 × 3.3 in
(165 × 132 × 84 mm)

Estimated Weight:
3.7 lb (1.7 kg)

Material:
Machined aluminum enclosure, anodized finish

EMC Immunity:
EN 50082 Part 2 IEC 61000-4-2,3,4,5,6,8 and 11

Warranty:
Two-year limited

Approvals:
NTEP CC 21-092, Class III/IIIL, 5,000d

Model

Indicator,CLS680 9-36VDC Base Indicator CLS680, Lantronix Module, Indicator,CLS680 18-72VDC Base Indicator CLS680
