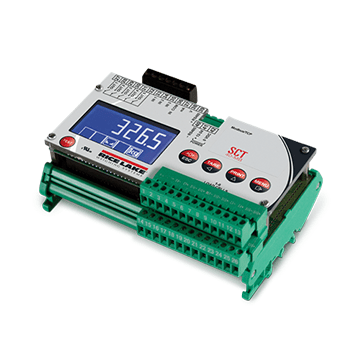

SCT-40 Signal Conditioning Transmitter
SCT-40 Signal Conditioning Transmitter

SCT-40 Signal Conditioning Transmitter

$187.60 – $1,333.30

  • LCD display
  • Supports up to eight independent reading channels for load cells
  • Displays weight, configuration, calibration and error conditions
  • DIN rail mounting
  • Theoretical calibration, real-weight calibration and error conditions
  • Push-button or preset tare
  • Converts digital weight to analog output or optional DeviceNet™, Profibus™, EtherNet/IP™, PROFINET and Modbus TCP protocols
  • Supports ASCII or MODBUS RTU protocols
  • Full scale analog cut put with zero setting and PLC correction of analog signal
  • Bit swapping selection for little endian and endian format
  • Three digital inputs, five digital outputs
  • One serial port, RS-485 half duplex or RS-232 transmit-only connection

Compact Control

Designed for PLC systems that require seamless integration of weight data, the SCT-40 provides reliable signal-conditioning function without the cost or bulk of a full size weight indicator/controller. With eight independent load cell channels, the SCT-40 delivers more power and more control in a compact design.

The versatile SCT-40 is DIN-rail mountable within a cabinet or control panel, where it converts a scale’s load cell signal to analog output, serial output or a fieldbus protocol. Providing more interface surface than its predecessors, the SCT-40 is more technician-friendly and easier to use, which simplifies scale setup, calibration and operation.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

SCT-40 Weigh Transmitter Specifications

Power:
Input: 12 to 24 VDC

Power Consumption:
5W

Excitation Voltage:
5 VDC, 240 mA, 16 x 350 ohm load cells

Analog Signal Input Range:
+/-39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1.0 μV/graduation recommended

A/D Sample Rate:
600 Hz

Resolution:
Internal:16,000,000 counts
Display: 999,999

 System linearity:
± 0.01% full scale

Digital I/O:
3 inputs 5 to 24 VDC, 5 outputs, 115 VAC/150 mA

Communication Ports
RS-232 transmit only, or RS-485 half duplex
Supports up to 115,200 bps

Analog Output:
Opto isolated, 16 bit
0-20 mA, 4-20 mA (max 300 ohm)
0-10 VDC, 0-5 VDC (min 10,000 ohm)

Display:
Backlit graphic LCD, transmissive
128 × 64 pixel resolution, 60 x 32 mm visible area

Keys/Buttons:
Five-key tactile keypad
Test, Zero, Tare, Print Menu, Escape, Left and Up, Navigator, Enter



 Dimensions:
(L × W × H)
5.82 × 3.62 × 2.36 in
(148 × 92 × 60 mm)

Temperature & Humidity:
Operating: -4 °F to 140 °F (-20 °C to 60 °C)
Humidity: 85% non-condensing

Rating/Material:
DIN rail mount: NEMA Type 1

Weight:
1 lb (0.5 kg)

Warranty:
One-year limited

Approvals:
cULus Re
Model

Indicator,Converter SCT40 SCT40-AN, 12-24VDC, Analog Output, and RS485/232 Serial Port, DIN Mount., Indicator,Convertor SCT40 SCT40-DN, 12-24VDC, DeviceNet Output, And RS485/232 Serial Port, DIN Mount, Indicator,Convertor SCT40 SCT40-PB, 12-24VDC, ProfiBus Output, And RS485/232 Serial Port, DIN Mount, Indicator,Convertor SCT40 SCT40-IP, 12-24VDC, EtherNet/IP, And RS485/232 Serial Port, DIN Mount, Indicator,Convertor SCT40 SCT40-TCP, 12-24VDC, TCP/IP Output, And RS485/232 Serial Port, DIN Mount, Indicator,Convertor SCT40 SCT40-MB, 12-24VDC, ModBus/TCP Output, And RS485/232 Serial Port, DIN Mount, Indicator,Convertor SCT40 SCT40-PN, 12-24VDC, ProfiNet Output, And RS485/232 Serial Port, DIN Mount, Power Supply,IDEC 12VDC DIN Rail Mount, 1.3 Amp, Input: 85 to 264 VAC, 100 to 370 VDC 15W, Power Supply,24VDC 1.3A Din Mount Input 90 to 264VAC,120 to 370VDC, UL E135494
