SCT-20 Signal Conditioning Transmitter


  • Space saving, vertical shape with DIN-rail mounting
  • Displays weight, configuration, calibration and error conditions
  • Theoretical calibration, real-weigh calibration, linearity calibration
  • Push-button or preset tare
  • Converts digital weight to analog output or optional DeviceNet™ or Profibus ™ or EtherNet/IP™ protocol
  • Supports ASCII or MODBUS-RTU protocols
  • Full-scale analog output with zero setting and PLC correction of analog signal
  • Bit swapping selection for little endian and big endian format
  • Two digital inputs, three digital outputs
  • One serial port, RS-232 transmit only, or RS-485 half duplex connection

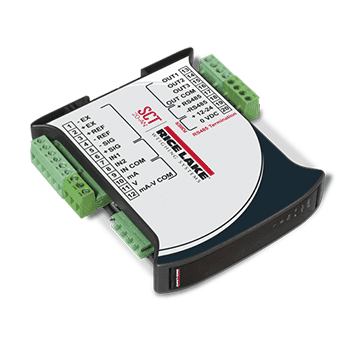

The SCT-20 signal conditioning transmitter is DIN-rail mountable within a cabinet or control panel, where it serves to convert a scale’s load cell signals to analog output, serial output, or a specific network protocol.

Guaranteed Safe Checkout

SCT-20 Signal Conditioning Transmitter Specifications

Input: 12 to 24 VDC

Power Consumption:
5 W

Excitation Voltage:
5 VDC, 120 mA, 8 × 350 ohm load cells

Analog Signal Input Range:
+/-39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1.0 μV/graduation recommended

A/D Sample Rate:
300 Hz

Internal: 16,000,000 counts
Display: 999,999


System linearity:
± 0.01% full scale

Digital I/O:
2 inputs 5 to 24 VDC, 3 outputs 115 VAC/150 mA
N.O. or N.C. (dry contact)

Communication Ports:
RS-232 transmit only, or RS-485 half duplex
Supports up to 115,200 bps

Analog Output:
Optoisolated, 16 bit
0-20 mA, 4-20 mA (max 300 ohm)
0-10 VDC, 0-5 VDC (min 10k ohm)

0.3 in (8 mm), six-digit, seven-segment LED
Annunciators: Net, center of zero, stability, KG, G, LB


4-key membrane panel, tactile feel
Zero, Tare, Print, Menu, Escape, Left & Up Navigation, Enter

(W × H × D)
4.72 × 4.52 × 0.98 in
(120 × 115 × 25 mm)

Temperature & Humidity:
Operating: -4 °F to 140 °F (-20 °C to 60 °C)
Humidity: 85% non-condensing

Enclosure: NEMA Type 1 plastic pluggable connectors

1 lb (0.5 kg)

One-year limited

NTEP CC 14-083
cULus Recognized


Indicator,Convertor SCT20 SCT20-AN, 12-24VDC, Analog Output, and RS485/232 Serial Port, DIN Mount, Indicator,Convertor SCT20 SCT20-DN,12-24VDC, DeviceNet Output, and RS485/232 Serial Port, DIN Mount, Indicator,Convertor SCT20 SCT20-PB, 12-24VDC, Profbus DP with RS485/232, DIN Rail Mount., Indicator,Convertor SCT20 SCT20-IP, 12-24VDC, Ethernet IP, and RS485/232 Serial Port, DIN Mount, Indicator,Convertor SCT20 SCT20-TCP/IP, 12-24VDC, Ethernet TCP/IP and RS485/232 Serial Port DIN Mount, Indicator,Convertor SCT20 SCT20-MB, 12-24VDC, Modbus/TCP Output and RS485/232 Serial Port, DIN Mount, SCT-20, Lit,Manual SCT 20 Series SCT Weight Transmitter, Indicator,Converter SCT20 SCT20-TCP/IP, 12-24VDC, Ethernet TCP/IP, RS485/232 Serial Port, DIN Mount, Power Supply,IDEC 12VDC DIN Rail Mount, 1.3 Amp, Input: 85 to 264 VAC, 100 to 370 VDC 15W, Power Supply,24VDC 1.3A Din Mount Input 90 to 264VAC,120 to 370VDC, UL E135494
