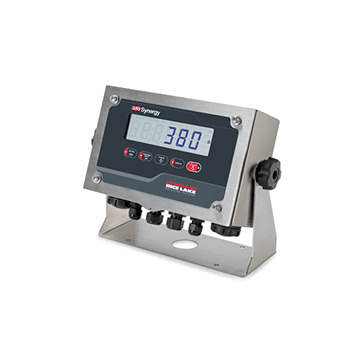

380 Synergy Series Digital Weight Indicator


  • LCD display
  • Alkaline battery powered
  • Push-button and keyed tare
  • Two communication ports
  • Five tactile buttons
  • Configurable print formats


  • Time/date
  • External power supply

Powerful, Straightforward Operation

Utilize the 380 Synergy Series indicator for straightforward weighing systems including portable warehouse scales, material handling applications and more. The 380 can easily mount almost anywhere, making weight data visible exactly where you need it.

The 380 Synergy is battery powered, providing up to 100 hours of continuous use. A five-button keypad makes operation quick and simple while RS-232 and USB ports make it easy to connect to peripheral equipment.

Configurable print formats allow you to print only the most important information to your application. Optional date/time and external power supply are also available to meet the needs of your application.

Durable Construction

A stainless steel, IP66 enclosure means the 380 Synergy is dust-tight and can stand up to high-pressure water. A bright, six-digit LCD display makes weight data easy to see.

Guaranteed Safe Checkout

380 Synergy Series Specifications

Batteries: 4 alkaline C-cell (not included)
Optional: 115/230VAC to 12VDC adapter

Power Consumption:
6 W max with optional external power adapter

Battery Life:
100 hours with 1 x 350 ohm load cell, no backlight
45 hours with 4 x 350 ohm load cells, low backlight
20 hours with 8 x 350 ohm load cells, low backlight

Excitation Voltage:
5 VDC, 8 × 350 ohm or 16 × 700 ohm load cells

Analog Signal Input Range:
-0.3 mV to +30 mV
Common mode voltage 0.7V to 3.3V

Analog Signal Sensitivity:
1 μV/graduation recommended

A/D Sample Rate:
5, 6, 10, 12, 20, 25, 40, 50, 80, 100Hz, software selectable

Internal: 8,000,000 counts
Display: 100,000

System Linearity:
Within 0.01% full scale

Communication Ports:
One RS-232 (three-wire)
One USB 2.0

g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net

Six 1 in (25 mm) tall, LCD digits

5 tactile buttons

(L × W × H)
11.58 × 4.53 × 8.57 in
(294 × 115 × 218 mm)

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Industrial: 14 °F to 122 °F (-10 °C to 50 °C)

IP66, 304 Stainless steel

6.25 lb (3 kg)

Two-year limited

EMC Immunity:
10 V/m

NTEP CC 21-051, Class III/IIIL, 10,000 d
Measurement Canada AM-6184
cULus Listed
CE Marked


Indicator,380 Universal Segmented LCD Display, Battery Powered, Synergy Series, Charger, Power Supply Assy, 12V 6W US Plug, 2.5mm ID, 5.5mm OD connector, Universal Input, BRD ASSY, REAL-TIME CLOCK 380 RTC ADD-ON BOARD, ROHS
