RoughDeck® Rough-n-Ready System, Floor Scale and 380 Indicator
RoughDeck® Rough-n-Ready System, Floor Scale and 380 Indicator 1
RoughDeck® Rough-n-Ready System, Floor Scale and 380 Indicator
RoughDeck® Rough-n-Ready System, Floor Scale and 380 Indicator 1

RoughDeck® Rough-n-Ready System, Floor Scale and 380 Indicator

$50.92 – $3,691.70

  • Package includes: RoughDeck HP 4 ft × 4 ft × 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 380 indicator
  • Package is factory-calibrated for 5,000 divisions

Scale

  • Heavy-duty design with structural steel under support
  • Four NTEP certified alloy steel shear beam load cells
  • Side-access JB4SS TuffSeal® junction box

Indicator

  • LCD display
  • Communication ports

The RoughDeck Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 4 x 4-foot RoughDeck floor scale with one of five quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP Certified system. Mount the indicator remotely or use an optional floor stand. The RoughDeck Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

RoughDeck Specifications

End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

 Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty (limited):
Weldment: Five-years
Load cells: Two-years
All other components: One-year

 Approvals:
NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d

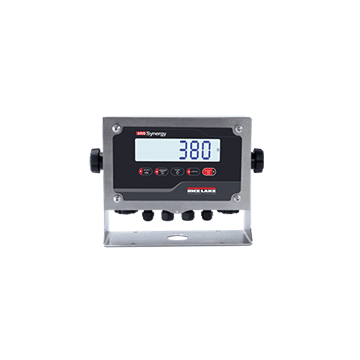

 380 Indicator Specifications

Power:
Batteries: 4 alkaline C-cell (not included)
Optional: 115/230 VAC to 12 VDC adapter

Battery Life:
45 hours, continuous use on alkaline batteries with four 350 ohm load cells, low backlight

 Communication Ports:
One RS-232 (three-wire)
One USB 2.0 (device)

Display:
Six 1 in (25 mm) tall, LCD digits

Annunciators:
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net



 Keys/Buttons:
5 tactile buttons

Rating/Material:
Enclosure: IP66, 304 stainless steel

Approvals:
NTEP CC 21-051
Measurement Canada AM-6184
CE Marked
cULus Listed
Model

Scale PKG, Rough-n-Ready 4×4-5k Roughdeck HP/380 Synergy Factory Calibrated, Scale PKG, Rough-n-Ready 4×4-10k Roughdeck HP/380 Synergy Factory Calibrated, Scale PKG,Rough-n-Ready 4×4-2500kg Roughdeck HC/380 Synergy Factory Calibrated Legal for Trade, Scale PKG,Rough-n-Ready 4×4-5000kg Roughdeck HC/380 Synergy Factory Calibrated Legal for Trade, Charger, Power Supply Assy, 12V 6W US Plug, 2.5mm ID, 5.5mm OD connector, Universal Input, Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted, Floor Stand,Indicator Steel Painted (36.3in), Floor Stand,Indicator Steel Painted (48in.), Access ramps, pit frames, bumper guards and portability frames available
