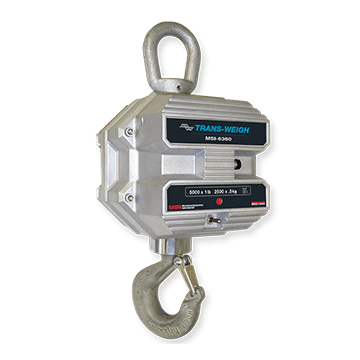

MSI-6360 Trans-Weigh Crane Scale
MSI-6360 Trans-Weigh Crane Scale

MSI-6360 Trans-Weigh Crane Scale

$442.20 – $3,765.40

  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA Plug Standard)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF
    remote display, TranSend and LaserLight2 remote display. Typically 100ft – 300ft, line of sight;
    for longer range consult factory
  • Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)
  • NTEP Certified configuration

Options
(Contact MSI for application consultation)

  • Anti-heat shielding for high-temperature applications
  • Rugged remote control (control for On/Off, Zero, Tare, and other functions)
  • Substitute bottom swivel hook with shackle
  • Oversized top lifting eye or shackle
  • Oversized bottom hook
  • Low headroom top adapter
  • Universal direct power supply; 85 to 265 VAC, 47 to 440 Hz / 130 to 300 VDC
  • Wi-Fi communication is available for specialty applications
  • Custom top and bottom interfaces
  • Crane scale cart
SKU: N/A Category: Tag:
Guaranteed Safe Checkout

MSI-6360 Trans-Weigh Crane Scale Specifications

Accuracy:
± (0.1% +1 d) of capacity

Resolution:
3,000 to 5,000 d standard (Up to 10,000 d available)

Enclosure:
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum

Lifting Eye, Shackle & Hook:
Crosby® or equivalent with 360° thrust-bearing swivel hook

Design Overload:
200% Safe / 500% Ultimate (except where noted)

 Functions:
On/Off

Displayable Units:
Pounds or kilograms selectable

Power:
12 Volt rechargeable battery, 115/230 VAC battery charger included

Operating Time:
Up to 40 hours between charging with typical use

Temperature Range:
Operating: -40 °F to 176 °F (-40 °C to 80 °C)
Certified: 14 °F to 104 °F (-10 °C to 40 °C)

 Calibration:
Digital via MSI ScaleCore remote device

Radio Link:
802.15.4 at 2.4 GHz

Radio Link Effective Range:
Typically 100 to 300 ft line of sight

Warranty:
One-year limited

Approvals:
NTEP 19-122: 500 to 70,000 lb
Model

MSI-6360 500LB TRANSWEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK, MSI-6360 2K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK, MSI-6360 5K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK, MSI-6360 10K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK, MSI-6360 20K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK, MSI-6360 30K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK, MSI-6360 70K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK, MSI-6360 100K TRANS-WEIGH F/A. RADIO LINK, SCALECORE SOFTWARE, 12 VDC BATTERY, SWIVEL HOOK, MSI-8000 Remote Display RF Handheld (Requires an MSI Crane Scale or MSI-7300 equipped with a RF modem), MSI-Rugged Remote Control Non-CE for Products with XBEE Radios, FINAL ASSY REMOTE DISPLAY AC POWER 8000HD, 8004HD Display AC, RedGrn 1.5in Dual Color LED Display, 85~264VAC, 4in LASERLIGHT2 MSI RF Includes ScaleCore RF Kit and Tilt Mounting Bracket, 6in LASERLIGHT2 MSI XBEE RF Includes ScaleCore RF Kit and Tilt Mount Bracket, MSI CRANE CART (48.50), MSI-4260B WIFI Opt. Kit. WIFI Modem Will Allow For Connectivity With Scaleconnect App., AC power supply
