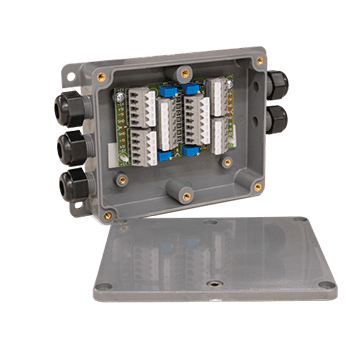

EL204 Signal Trim Junction Box


  • ABS enclosure with molded-in cable fittings
  • Number of cells: Two, three or four single cells
  • Floor, hopper, tank or livestock applications

The EL204 signal trim junction box is a fit choice for summing two to four single cells in floor, hopper, tank or livestock applications. The ABS enclosure with molded-in cable fittings, sealed six-screw lid attachment and die-cut gasket provides superior environmental protection.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

EL204 Signal Trim Junction Box Specifications

Cable Fittings:
Five water tight nylon compression fittings, 0.210 × 0.280 in

Spring clamp screwless, 12 to 28 AWG

ABS with molded through-fittings, sealed six-screw lid

Temperature Range:
Operating: 0 °F to 122 °F (-18 °C to 50 °C)

Individual cell trim, signal trim

100,000 ohm, 25-turn cermet

Circuit Board:
3.8 × 2.3 in, with conformal coating

One-year limited


J-Box,EL204 ABS Signal Trim, Board,4 Channel ST Signal Trim w/Expansion FM
