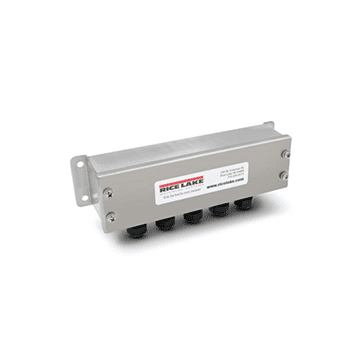

EL504 Signal Trim Junction Box


  • Strain relief cable fittings
  • Removable connectors for easy wiring
  • Number of cells: two or four single cells (even number of cells only)
  • Truck and floor scales
  • Limited space installations

For signal trimming of two or four load cells outputs individually, the EL504 signal trim junction box is perfect for truck scales, floor scales and limited space installations. A stainless steel NEMA Type 4X enclosure ensures protection of sensitive circuitry from most destructive elements.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

EL504 Signal Trim Junction Box Specifications

Cable Fittings:
Five nylon 0.187 to 0.312 in cable strain reliefs

Electrovert 0.197 in (5.0 mm) miniature two piece connectors. Maximum wire size #14 AWG, connectors are removable for easy wiring.

Individual cell trim, signal trim

100,000 ohm, 25-turn cermet

Temperature Range:
Operating: 0 °F to 122 °F (-18 °C to 50 °C)

NEMA Type 4X, 40 PSI washdown
Stainless steel

Circuit Board:
6.5 × 1.5 in, with anti-fungal coating

One-year limited


J Box,ST EL504 4 CHAN SST NEMA 4X, Board,ST EL504 4 CHAN, EL504 Enclosure Only EL504 junction box enclosure with cord grips and cover
