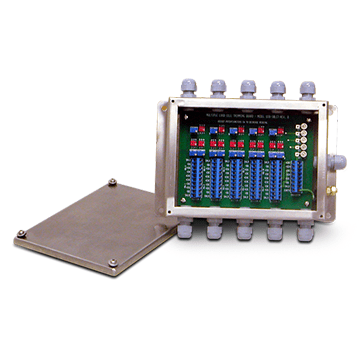

JB1010ST Signal Trim Junction Box
JB1010ST Signal Trim Junction Box

JB1010ST Signal Trim Junction Box

$623.10 – $824.10

  • Transient protection using gas discharge tubes
  • Stainless steel, NEMA Type 4X enclosure
  • Section and individual cell trim capability
  • Compact enclosure only 1.75 in deep
  • Strain relief cable fitting
  • Number of cells: Two, four, six, eight or 10 single load cells
  • Legal for Trade sealing screws, wire and seal included
Applications
  • Tank, truck and railroad scales
  • Summing 10 load cells with individual and section trimming capability

Specifically for signal trimming, the compact JB1010ST signal trim junction box with transient protection provides individual cell and section trim capability. The JB1010ST junction box totals up to ten single load cells and includes transient protection inside the element-resistant NEMA Type 4X stainless steel enclosure.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

JB1010ST Junction Box Specifications

Cable Fittings:
11 nylon cable strain reliefs for cable dimension range: 0.079 to 0.314 in

Connectors:
Electrovert 0.197 miniature screw terminals
Five positions
Maximum wire size: #14 AWG
External enclosure ground stud

 Trimming:
Individual cell and section signal trim

Potentiometers:
100,000 ohm, 25-turn cermet, individual trim
100 ohm, for section trimming

Rating/Material:
NEMA Type 4X
Stainless steel

 Temperature Range:
Operating: 0 °F to 122 °F (-18 °C to 50 °C)

Warranty:
One-year limited
Model

Board,ST JB1010ST 10 Chan, J-Box,JB1010ST 10 Channel Signal Trim SST Nema 4x, JB1010ST Enclosure Only JB1010ST junction box enclosure with cord grips and cover
