920i® Belt Scale Integrator


  • Large LCD graphical display
  • Four bidirectional communication ports
  • Rate time and speed time displayed by the hour, minute or second
  • Measurement displayed in feet or meters
  • Unit of rate displayed in tons, pounds, kilograms, metric tons or long tons
  • Digital I/O for totalizer
  • Optional analog and alarm outputs
  • For added security, integrator has the ability to be password protected
  • Multiple communication ports
  • Built-in support for ticket printing

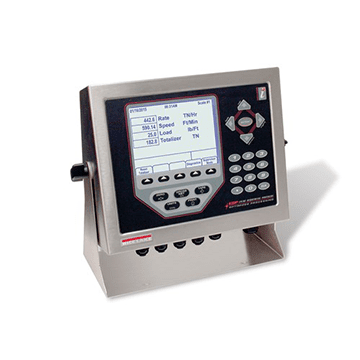

The 920i Belt Scale Integrator has a large LCD graphical display with the ability to display rate and speed time by hour, minute or second.

Guaranteed Safe Checkout

920i Belt Scale Integrator Specifications

Power Consumption:
340 mA, maximum at 115 VAC (26 W)
240 mA at 230 VAC (26 W)Excitation Voltage:
10 ± VDC, 16 × 350 ohm or 32 × 700 ohm load cells per A/D card

Analog Signal Input Range:
-10 mV to 45 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz
1.0 μV/graduation typical at 120 Hz
4.0 μV/graduation typical at 960 Hz

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Internal: 8,000,000 counts

System Linearity:
± 0.01% full scale

Line Voltages:
115 or 230 VAC,
Frequency: 50 or 60 Hz

Digital I/O:
Six I/O channels on CPU board; optional 24-channel I/O expansion boards availableCircuit Protection:
RFI, EMI, ESD protection

Communication Ports:
Four ports on CPU board support up to 115,200 bps; optional dual-channel serial expansion boards available
Port 1: Full duplex RS-232
Port 2: RS-232 with CTS/RTS; PS/2 keyboard interface via DB-9 connector
Port 3: Full duplex RS-232, 20 mA output
Port 4: Full duplex RS-232, 2-wire RS-485, 20 mA output

(W × H)
4.6 × 3.4 in (116 × 86 mm)
320 × 240 pixel VGA liquid crystal display (LCD) module with adjustable contrast

27-key membrane panel, tactile feel, PS/2 port for external keyboard connection

(L × W × H)
10.56 × 4.61 × 10.87 in
(268 × 117 × 276 mm)
Deep Universal:
10.76 × 5.36 × 10.87 in
(273 × 136 × 276 mm)Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

NEMA Type 4X/IP66
stainless steel

Panel Mount Enclosure: 8.5 lb (3.9 kg)
Deep Universal: 11 lb (5.0 kg)

Integrator and load cells: two-year limited

CE Approved
cULus Listed (universal, deep and wall mount enclosure)
Custom wall mount approved for 508A (optional)
Panel mount UL recognized


Integrator,Belt Scale Deep universal enclosure, 115VAC, Integrator,Belt Scale Deep universal enclosure, 230VAC, Belt scale integrator panel mount, Belt scale integrator Wall mount, Integrator,Belt Scale With UPS (Uninterruptible Power Supply) 115VAC, Integrator,Belt Scale With UPS (Uninterruptible Power Supply) 230VAC, Integrator,Belt Scale Deep Universal, 2 slot exp, Ethernet IP for A-B 115V, Integrator,Belt Scale Deep Universal, 2 slot exp, Ethernet IP for A-B 230V, Integrator,Belt Scale BCi, Deep Universal, 2 slot exp, Single Channel Analog Output Card, 115VAC, Ind Opt,Expansion Board With 2 Option Slots 920i Wall Mount, Ind OPT,Expansion Board w/2 Option Slots 920i Panel Mount, Ind OPT/Ethernet Wireless Embedded Device Servier 10/100 base-T, Ind Opt,EtherNet/IP for 920i, 820i and 720i. Protocol for Allen-Bradley PLC., Ind OPT,Analog Output 0-10V, 0-20mA, 4-20mA for 720i, 820i, 920i
