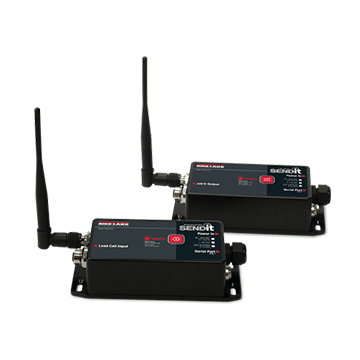

SendIt Wireless Load Cell Interface System


  • Works with any basic digital weight indicator
  • Excitation to load cell(s) provided by the transmitter, not the indicator
  • Each transmitter/receiver set is individually paired and will not interfere with another set
  • RS-232 cable included with transmitter and paired set

SENDit wireless load cell interface reads the signal from a load cell and sends that data wirelessly to a receiving indicator, eliminating the need for traditional wire runs.

Guaranteed Safe Checkout

SendIt Specifications

5 to 6 VDC

Excitation Voltage:
Transmitter: +4.8 VDC, 16 × 350 ohm or 32 × 700 ohm load cells

Standard Antenna:
1/2 wave 2dBi, articulated

Direct sequence spread spectrum at 2.4 GHz, 802.15.4 license free

Effective Range:
Typically 100 ft – 300 ft
For longer range, consult factory

Circuit Protection:
RFI, EMI, ESD protection

Communication  Ports
Full duplex RS-232

Temperature Range:
-40 °F to 185 °F (-40 °C to 85 °C)

NEMA Type4 (IP66), aluminum black powder coated (excludes wall cube model)

Two-year limited


SENDIT TRANSMITTER 5-6VDC, Sendit Receiver 5-6VDC, SendIt System Pair RF Matched pair, 1 Load Transmitter, 1 Load Receiver 5-6.5VDC Input, Battery Charger 6V SLA 7000/7001, Battery 6V SLA 7000/7001, Enclosure Battery 6V SLA 7000/7001, CORDSET IP68 4 PIN MALE SHIELDED 4 METER, CABLE ASSY,SERIAL I/O DCE D9 SOCKETS 8000, CABLE ASSY,SERIAL I/O DTE D9 PINS 8000, Charger, Power Adapter, 12W 6VDC, Wall Mount, Universal Input 90-264VAC, 2.1mm Coax Power Plug, Cordset IP68 4 Pin Male Shielded 2 Meter (6.56 feet), CONN,M12 4 Pin Male Field Wireable 4-6mm Cable OD Straight, CONN,M12 4 Pin Male Field Wireable 6-8mm OD Straight IP 67, CONN,M12 4 Pin Male Field Wireable 4-6mm OD Right Angle, CONN,M12 4 Pin Male Field Wireable 6-8mm OD Right Angle, Option Kit Remote Antenna 7000/7001 (Uses Standard Antenna), ANTENNA KIT LONG RANGE OMNI W/3M COAX, ANTENNA KIT CORNER REFLECTOR 9DBI W/3M COAX, ANTENNA KIT CORNER REFLECTOR 12dBi W/3m COAX, ANTENNA KIT YAGI 15DBI W/3M COAX
