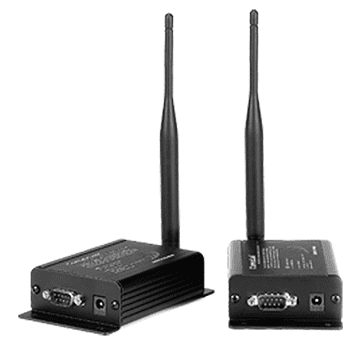

ConnexLink™ Wireless Radio 900 MHZ Transceivers


  • Durable industrial-grade enclosure with mounting flanges
  • Reliable communications up to 115 to 200 kbps
  • Supports point-to-point and point-to-multipoint applications

ConnexLink 900 MHZ wireless radio easily communicates data between various electronics in your scale system.

Guaranteed Safe Checkout

ConnexLink Wireless Radio 900 MHZ Transceivers Specifications

Input: 7 to 18 VDC
Output: 5 to 1,000 mW variable

Frequency Band:
902 to 928 MHz


Standard: RS-232 (DB9 male)
ConnexLink PRO: RS-485 (6-pin terminal block)

Serial Interface Data Rate:
Up to 115 to 200 kbps

Current Draw (at 12 VDC):
400 mA TXD, 40 mA RXD

Power Supply:
AC transformer via 6 ft cable (183 cm)

Electrical Requirements:
Line voltage 100 to 120 V; frequency 50/60 Hz
(240 V outside the US)

32 selectable channels

1-byte system ID, DES

-99dB at full RF data rate

Range (line-of-sight):
Up to 20 miles (32 km)

4.75 × 2.75 × 1.17 in
(121 × 70 × 30 mm)

Temperature Range:
-40 °F to 176 °F (-40 °C to 80 °C)
Humidity (non-condensing):
10% to 90%

<6 oz (<170 g)

Antenna Connector:
Reverse polarity SMA jack (female)


Transceiver,Wireless RF ConnexLink, 900 MHz, 1W, RS232, Includes Power Supply, 2.0 dBi Antenna, RS232 Cable, Transceiver,Wireless RF ConnexLink PRO, 900 MHz, 1W, RS232, RS485, Includes Power Supply 2.0 dBi Antenna, Transceivers,Pair, RF Wireless ConnexLink, 900 MHz, 1W, RS232, 9600 8 none. Radios uniquely matched and labeled as client and server Includes Power Supply, Power Supply,ConnexLink 110-240VAC Input, Output 7.5VDC 2.0A, Antenna,ConnexLink 900MHz 1/2 Wave 2 dBi 7 Inch RPSMA, Antenna,Yagi 900 MHz 9 dBi N Female connector (Cable Required) HG909Y-NF, Cable,Antenna 20Ft RP-SMA Plug To N Male 195 Series, Yagi CA-RSPNMA020, Housing,FRP Connexlink 900MHz with Heater., Housing,FRP Connexlink Pro with Heater., Cable,COMM DB9F 9 Pin FEM On One End Stripped And Tinned On Other End, Cable,ASSY Power Single Ended 2.1mm ID 5.5mm OD 12mm Barrel Length Six Foot 18AWG
