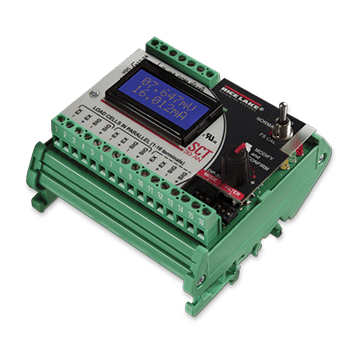

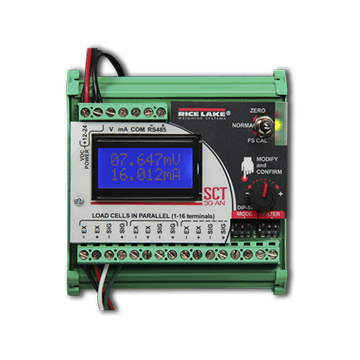

SCT-30 Signal Conditioning Transmitter


  • LCD display
  • Powers up to eight (350 ohm) load cells in parallel (with a 24-bit A/D converter)
  • A/D converter 24-bit 4.8 kHz

Maximum Control, Miniature Size

For PLC systems that require weight data from a scale, Rice Lake’s compact SCT-30 transmitter delivers equivalent signal-conditioning function without the cost or bulk of a full-size weight indicator/controller.

Rice Lake’s SCT-30 models are DIN-rail mountable within a cabinet or control panel, where they convert a scale’s load cell signal to serial or analog output. Technicians and operators find the analog output signal particularly useful for monitoring hopper filling and discharge. Unlike many other signal transmitters, Rice Lake SCTs have their own integrated display, with annunciators for unit and weighing status, and push buttons or toggle switch and digital rotary for zero, tare and setpoint entry—ultimately simplifying scale setup, calibration and operation.

  • 16-bit analog output: 0-20 mA, 4-20 mA, 0-5 V, 0-10 V, ±5 V, and ±10 V
  • Mounting on Omega/DIN rail for back panel or junction box
  • Diagnostic message for load cell disconnect and over-capacity errors
Guaranteed Safe Checkout

SCT-30 Signal Conditioning Transmitter Specifications

Input: 12 to 24 VDC

Power Consumption:
3 W

Excitation Voltage:
5 VDC, 120 mA, 8 × 350 ohm load cells

Analog Signal Input Range:
+/-39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum
1.0 μV/graduation recommended

A/D Sample Rate:
300 Hz

Internal: 16,000,000 counts

System Linearity:
± 0.01% full scale

Communication Ports:

Analog Output:
Opto isolated, 16 bit
0-20 mA, 4-20 mA (max 300 ohm)
0-10 VDC, 0-5 VDC (min 10k ohm)

Eight-digit alphanumeric tow line LCD, 5 mm high

Control knob and DIP switches

(L × W × H)
3.74 × 3.54 × 2.36 in
(95 × 90 × 60 mm)

Temperature & Humidity:
Operating: -4 °F to 140 °F (-20 °C to 60 °C)
Humidity: 85% non-condensing

DIN rail mount: NEMA Type 1

1 lb (0.5 kg)

One-year limited

cULus Recognized


Indicator,SCT30 SCT30-AN, 12-24VDC, Analog Output, and RS485 Serial Port DIN Mount, Displays mV and Analog Output Signal Only. Does Not Display Weight., Indicator,SCT30 SCT30-AN, Enclosed in a Plastic Junction Box, 12-24VDC, Analog Output and RS485 Serial Port., Power Supply,IDEC 12VDC DIN Rail Mount, 1.3 Amp, Input: 85 to 264 VAC, 100 to 370 VDC 15W, Power Supply,24VDC 1.3A Din Mount Input 90 to 264VAC,120 to 370VDC, UL E135494, End Clamp, Left and Right set with Clip for DIN 35 Rail for SCT-40
