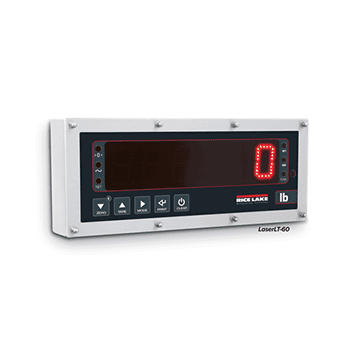

LaserLT-60 and LaserLT-100 Large-Display Weight Indicators


  • LED Display
  • Integrated five-key waterproof keypad
  • Includes removable back wall mount bracket
  • Power from 12 to 24VDC, included with 110 to 240 VAC internal power supply
  • Up to four independent scales or four load cell inputs
  • Quick menu for real and theoretical calibration
  • Up to three calibration linearization points
  • Semi-automatic and presettable tare
  • Two digital outputs for 13 setpoint types with timers to enable on and delay period
  • Two digital inputs for operating keys remotely

Large-display Digital Weight Indicator

Use the LaserLT-60 and LaserLT-100  to clearly display weight information at distances up to 150 feet. The displays are ideal for applications where weight needs to be viewed from a distance. Both models operate with a range of weight indicators to easily integrate with any system. The incoming format can be interfaced through a set function or with a manual setup.

Indicators are NTEP Certified when loaded with SCT-1100 firmware. LaserLT-60/100 are configurable weight indicators.

  • Max 10,000 divisions or multi-range
  • A/D 24 bit 4-channel conversion
  • Connect 4 cells with summing or up to 4 independent weighing systems

The LaserLT-60 and LaserLT-100 are designed for indoor, outdoor and washdown applications. With adjustable brightness, the six-digit, seven-segment character LED displays are easy to read even in direct sunlight. The stainless steel enclosure is weathertight with an IP68 rating. With a standard anti-condensation air valve regulating humidity and pressure, these displays are protected for outdoor use.

The LaserLT-60 and LaserLT-100 are easy to mount with standard back brackets or optional side-mounting brackets. The back brackets have a 15-degree angle for clear visibility from below and side-mounting brackets can be used to support, hang or wall mount the remote display.

Guaranteed Safe Checkout

LaserLT-60 and LaserLT-100 Specifications

AC voltages: 100 to 240 VAC
DC voltages: 12 to 24 VDC

Excitation Voltage:
5VDC, 120 mA, 16 x 350 ohm

Analog Signal Input Range:
± 39 mV

Analog Signal Sensitivity:
0.03 μV/graduation minimum
0.3 μV/graduation recommended

A/D Sample Rate:
Four channel A/D up to 200 Conv./sec. auto select

Internal: 1,500,000 counts
Display: 800,000

Digital I/O:
Two inputs: 12/24 VDC
Two outputs:150 mA 48 VAC/ 150 mA 60 VDC

Communication Ports:
(1) RS-232, (1) RS-485

6-digit, 7-segment discrete
red LED lamps, single width
2.4 in (60 mm) or 4 in (100 mm) digit
Decimal/comma indication in any position
Annunciators for NT, Stability, COZ
5 levels of intensity

Maximum Viewing Distance:
LaserLT-60: 2.4 in digit 75 ft (25 m)
LaserLT-100: 4 in digit 100 ft (30 m)

Five key, Zero (Down), Tare (Up),
Mode (Right), Print (Enter), C (On/Off)

-40° F to 120° F (-40° C to 49° C)

304 stainless steel, IP68

10 lb (4.5 kg)

One-year limited

NTEP CC 20-046 III/IIIL 10,000d
Measurement Canada AM-6165C III/IIIL 10,000d
CE Marked


Indicator,LaserLT-60 Large-Display 60mm (2.4in) LED,12-24VDC/110-240VAC, SST Enclosure, Indicator,LaserLT-100 Large-Display, Red 100mm(4in)LED, 12-24VDC/110-240VAC, SST Encl, Opt Kit,Tilting Brackets Side Mounting Bracket, 2 SST Angled Bracket for LaserLT-100, Visor,LaserLT-100 Display SST Visor
