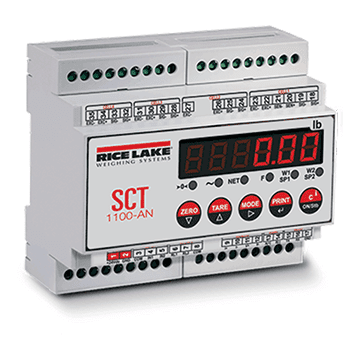

SCT-1100 Signal Conditioning Transmitter


  • Up to four independent scales or four load cell inputs
  • Quick menu for real and theoretical calibration
  • Red LED display
  • DIN rail mountable
  • Configurable calibration and setup parameters from keyboard
  • Calibration using linearization points
  • Reading of the net, gross and tare weights, clearing, semi-automatic and pre-settable tare, scale switch, setting of outputs application thresholds
  • Diagnostic information via serial port, message display, printing, setting of APW in counting mode, simulation of key pressure
  • Modbus RU or ASCII protocol

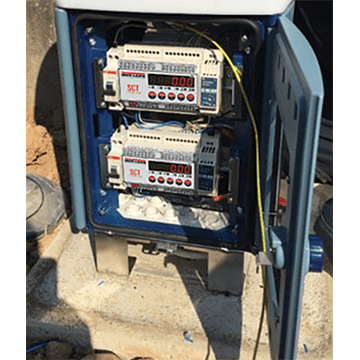

Total Control in a Compact Package

The ideal solution for PLC systems which require weight data from a scale, Rice Lake’s SCT signal transmitters offer maximum control without the additional cost or space required of a traditional weight indicator.

These multi-function transmitters have a compact design while presenting the same signal-conditioning functions.

Utilized as an independent or dependent four-channel digital junction box, the SCT-1100 allows for the direct reading and diagnosis of each individual connected load cell or summed as a whole.

Guaranteed Safe Checkout

SCT-1100 Weight Transmitter Specifications

12/24 VDC

Power Consumption:
70 mA min to 100 mA max

Excitation Voltage:
5VDC, 120 mA, 8 × 350 ohm load cells

Analog Signal Input Range:
± 39 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum

A/D Sample Rate:
Four channel A/D 24-bit sigma-delta conversion, up to 200 conv. /sec. auto select

Internal: 1,500,000 counts
Display: 800,000

Digital I/O:
Two inputs: 12/24 VDC
Two outputs:150 mA 48 VAC/ 150 mA 60 VDC

Serial Ports:
Modbus RTU or ASCII selectable/bidirectional
(both ports)
(1) RS-485 for connection to a PC or weight repeater
(1) RS-232 for connection to a PC or printer

Analog Output (if equipped):
Opto isolated, 16-bit
0 to 20mA, 4 to 20mA (Maximum 350 ohm)
0 to 5VDC, 0 to 10VDC (Minimum 10,000 ohm)

Net, center of zero, stability

Six-digit (10 mm), red LED

Five key, membrane panel, tactile feel Zero (Down), Tare (Up), Mode (Right), Print (Enter), C (On/Off)


(L × W × H)
4.17 × 3.54 × 2.28 in
(106 × 90 × 58 mm)

5 °F to 104 °F (-15 °C to 40 °C)

85% non-condensing

Enclosure: NEMA Type 4, plastic
Clear cover: six PG9 cord grips

One-year limited

NTEP CC 20-046
Measurement CanadaAM-6165C
EU Legal for Trade
cULus Listed
NAWI Certified
UKCA Marked


Indicator,SCT1100-AN 12-24VDC and, RS485/232 Serial Port, Analog Out DIN Mount, 4 load cell input. Regulatory modes., Indicator,SCT1100 SCT1100-AN, Enclosed in Plastic Junction Box, Requires 12 -24VDC, Analog Output and RS485/232 Serial Port. SCT-1100, Fieldbus,SCT-1000 Module 12-24VDC, RS232/485 Connection for Ethernet TCP/IP or MODBUS TCP DIN Mount, Power Supply,IDEC 12VDC DIN Rail Mount, 1.3 Amp, Input: 85 to 264 VAC, 100 to 370 VDC 15W, Power Supply,24VDC 1.3A Din Mount Input 90 to 264VAC,120 to 370VDC, UL E135494
