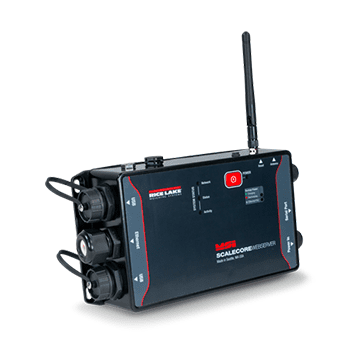

MSI ScaleCore Webserver

Call for Price

  • Display and control multiple ScaleCore based scales, indicators, remote displays
    and receivers through network connected devices using a web browser, including
    cell phones, tablets, and PCs.
  • Capable of functioning either with an existing Wi-Fi network or as its own Wi-Fi router
  • Can be powered by a dedicated power input or directly through the Ethernet cable where PoE (Power over Ethernet) is supported
  • RS-232 communications at up to 460 Kbps
  • Scale / load cell summing
  • Tiered login to limit scale functionality for different levels of users

MSI ScaleCore Webserver is a network interface with a built-in web-browser allowing remote monitoring of your scale system from virtually anywhere.

Multiple Weighing Devices

Communicate with any combination of up to seven devices and any MSI ScaleCore based scale or weighing instrument equipped with Wi-Fi modem.

This can include:
*(consult for applications utilizing the MSI-7300)

Operators have the option of viewing individual scale weights or easily summing several scales together. This makes the MSI ScaleCore Webserver ideal for applications utilizing multiple pick points in a lifting application or for viewing individual tank leg values for load cell mount kits.

Wireless Network Router

MSI ScaleCore Webserver can operate as its own wireless router or be used in conjunction with an existing wireless network to connect with each weighing device. A tiered login for supervisors and operators will help simplify operation by protecting critical functions and settings not used in day-to-day processes.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

ScaleCore Webserver Specifications

Minimum System Requirements:
Will display on any device with a web browser supporting HTML 5
Connected ScaleCore based MSI scales and indicators are required to have the optional Wi-Fi radio module

Wi-Fi 2.4 GHz IEEE 802.11g
Gigabit Ethernet
2 × USB 2.0 Interface
RS-232 Serial

Status Annunciators:
Units (lb, kg, short tons (tn), metric tons (t), (NONE) gross/net, motion, center of zero

Operating Temperature:
-10 °C to 40 °C (14 °F to 104 °F)

Effective Range:
Typically 100 to 300 ft, line of sight; for longer range consult factory

IP65, aluminum black powder coated (excludes 85 to 265VAC model)

5 to 6 VDC, 7 to 14 VDC, 85 to 265 VAC, PoE

One year limited

NTEP CC 21-098 Classes III and IIIL at 10,000d


Final Assembly, Scalecore Webserver 5VDC, Final Assembly, Scalecore Webserver 7-14VDC, Final Assembly, Scalecore Webserver 5VDC w/ wall adapter, MSI-8000 Remote Display WiFi Handheld, Extended Range Antennas
