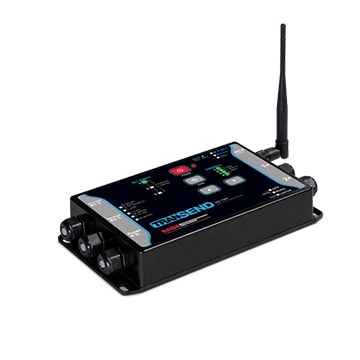

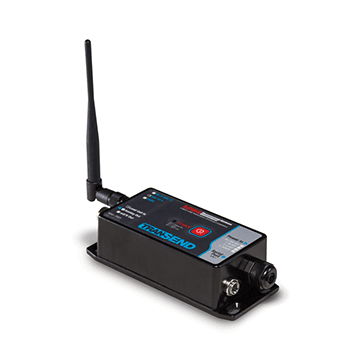

TranSend™ Wireless Load Cell Interface System

$1,031.80$2,934.60

  • Works with any basic digital weight indicator
  • Excitation to load cell(s) provided by the transmitter, not the indicator
  • Each transmitter/receiver set is individually paired
  • Serial communication cable included with all transmitters
  • IP68 milled aluminum enclosure

A Simple and Efficient Load Cell Interface

From the initial weighment on the scale to the final numeric value on the indicator, efficient communication is key to the success of the entire operation. Whether it’s overhead, livestock, tank, or heavy capacity weighing, once your traditional conduit is damaged or needs to be replaced, communication is halted and so is your operation. The MSI-7000 and 7001 TranSend not only solves issues resulting from traditional conduit, it also exceeds communication application expectations.

From the brand you know and trust for expert integrated solutions, MSI has designed both the 7000 and 7001 TranSend to transform the signal of one or more load cells and transmits that data wirelessly to a receiving unit. TranSend is fully compatible with a broad range of receiving devices including MSI-8000, MSI-8000HD, any other digital weight indicator, PC, PLC, or other industrial device. Housed in a rugged IP-66 NEMA Type 4 enclosure, TranSend is suitable for most indoor and outdoor environments with an operating distance of up to 300 feet.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

TranSend Specifications

Power:
MSI-7000: 5-6 VDC, 7-36 VDC, 85-265 VAC
MSI-7001: 5-6 VDC, 7-36 VDC, 85-265 VAC

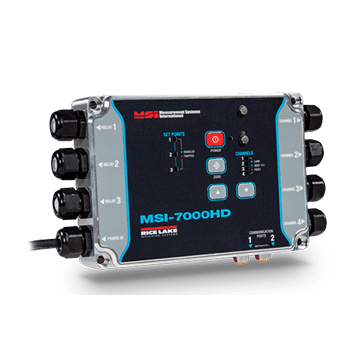

MSI-7000HD: 7-36 VDC, 9-36 VDC, 85-265 VAC

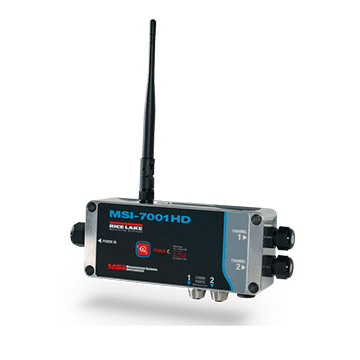

MSI-7001HD: 5-6 VDC, 7-36 VDC, 9-36 VDC, 85-265 VAC

Excitation Voltage:
Transmitter: +4.8 VDC, 16 x 350 ohm or 32 x 700 ohm load cells

Standard Antenna:
1/2 wave 2dBi, articulated

Frequency:
Direct sequence spread spectrum at 2.4 GHz, 802.15.4

Effective Range:
Typically 100 to 300 ft, line of sight; for longer range consult factory

Communication Ports:
Full duplex RS-232

Circuit Protection:
RFI, EMI, ESD protection

Operating Temperature:
-40 °F to 185 °F (-40 °C to 85 °C)

Rating/Material:
MSI-7000HD/MSI-7001HD: IP68 (Milled Anodized Aluminum)

Additional RF Options:
Wi-Fi
802.15.4
FHSS

Warranty:
One-year limited

Model

MSI-7000LC 4CH 5-6VDC NO RELAYS RF 802.15.4, 2.4GHz, MSI-7000LC 4CH 5-6VDC W/ 3 Coil Relays RF 802.15.4 2.4GHz, MSI-7000LC 4CH 5-6VDC WiFi, No Relays WiFi, 802.11 b/g, 2.4GHz, MSI-7000LC 4CH 5-6VDC WiFi, w/ 3 Coil Relays WiFi, 802.11 b/g, 2.4GHz, MSI-7000LC 4CH 7-36VDC NO RELAYS RF 802.15.4 2.4GHz, MSI-7000LC 4CH 7-36VDC W/ 3 COIL RELAYS RF 802.15.4 2.4GHz, MSI-7000LC 4CH 7-36VDC WiFi, No Relays WiFi, 802.11 b/g, 2.4GHz, MSI-7000LC 4CH 7-36VDC WiFi, w/ 3 Coil Relays WiFi, 802.11 b/g, 2.4GHz, MSI-7000LC 4CH 85-265 VAC 120-370 VDC NO RELAYS RF 802.15.4, 2.4GHz, MSI-7000LC 4CH 85-265VAC W/ 3 COIL RELAYS, 120-370 VDC RF 802.15.4 2.4GHz, MSI-7000LC 4CH 85-265 VAC WiFi, 120-370 VDC, No Relays WiFi, 802.11 b/g, 2.4GHz, MSI-7000LC 4CH 85-265VAC WiFi, w/ 3 Coil Relays, 120-370 VDC WiFi, 802.11 b/g, 2.4GHz, MSI-7000AN Analog Out DC 5-6VDC No A/D, 4-20mA 0-20mA 0-5V 0-10V +-5V +-10V RF 802.15.4 2.4GHz, MSI-7000D RF Modem 5-6VDC W/ 3 COIL RELAY RF 802.15.4 2.4GHz, MSI-7000D RF MODEM DC 7-36VDC, W/ 3 COIL RELAYS RF 802.15.4 2.4GHz, MSI-7000AN ANALOG OUT DC 7-36VDC NO A/D, 4-20mA 0-20mA 0-5V 0-10V +-5V +-10V RF 802.15.4 2.4GHz, MSI-7000D RF MODEM AC 85-265 VAC, W/ 3 COIL RELAYS RF 802.15.4 2.4GHz, 120-370 VDC, MSI-7000AN ANALOG OUT AC 85-265 VAC, NO A/D, 4-20mA 0-20mA 0-5V 0-10V +-5V +-10V RF 802.15.4 2.4GHz, 120-370 VDC, MSI-7001LC 1CH 5-6VDC RF 802.15.4 2.4GHz, MSI-7001LC 1CH 5-6VDC WiFi, 802.11 b/g, 2.4GHz, MSI-7001LC 1CH 7-36VDC RF 802.15.4 2.4GHz, MSI-7001LC 1CH 7-36VDC WiFi, 802.11 b/g, 2.4GHz, MSI-7001LC 1CH 85-265VAC RF 802.15.4 2.4GHz 120-370VDC, MSI-7001LC 1CH 85-265VAC WiFi, 802.11 b/g, 2.4GHz 120-370VDC, MSI-7001mV mV/V OUTPUT DC 5-6VDC RF 802.15.4 2.4GHz, MSI-7001AN ANALOG OUTPUT 5-6VDC, NO A/D, 4-20mA 0-10mA 0-5V 0-10V +-5V +-10V RF 802.15.4 2.4GHz, MSI-7001D RF MODEM 5-6VDC RF 802.15.4 2.4GHz, MSI-7001mV mV/V OUTPUT DC 7-36VDC RF 802.15.4 2.4GHz, MSI-7001D RF MODEM DC 7-36VDC RF 802.15.4 2.4GHz, MSI-7001AN ANALOG OUTPUT 7-36VDC, NO A/D, 4-20mA 0-20mA 0-5V 0-10V +-5V +-10V RF 802.15.4 2.4GHz, MSI-7001mV mV/V OUTPUT AC 85-265VAC 120-370VDC RF 802.15.4 2.4GHz, MSI-7001D RF MODEM AC 85-265VAC 120-370VDC RF 802.15.4 2.4GHz, MSI-7001AN ANALOG OUTPUT 85-265VAC, NO A/D, 4-20mA 0-20mA 0-5V 0-10V +-5V +-10V 120-370VDC, RF 802.15.4 2.4GHz, MSI-7000HD 4CH 9-36VDC Iso, 3 Coil Relays, 802.15.4, MSI-7000HD 4CH 7-36VDC 3 Coil Relays, 802.15.4, MSI-7000HD 4CH 7-36VDC 3 Coil Relays, WIFI, MSI-7000HD 4CH 9-36VDC Iso, 3 Coil Relays, WIFI, MSI-7000HD 4CH 85-265VAC 3 Coil Relays , 802.15.4, MSI-7000HD 4CH 85-265VAC 120-370VDC , 3 COIL RELAYS , WIFI, 6260CS HALF PLATE BATT WELL ASSY, MSI-7001HD 2CH 5-6VDC 802.15.4, MSI-7001HD 2CH 5-6VDC WIFI, MSI-7001HD 2CH 7-36VDC 802.15.4, MSI-7001HD 2CH 7-36VDC WIFI, MSI-7001HD 2CH 9-36VDC Isolated, 802.15.4, MSI-7001HD 2CH 9-36VDC Isolated, WIFI, MSI-7001HD 2CH 85-265VAC 120-370 VDC, 802.15.4, MSI-7001HD 2CH 85-265VAC 120-370 VDC, WIFI
