$180.90 – $1,768.80

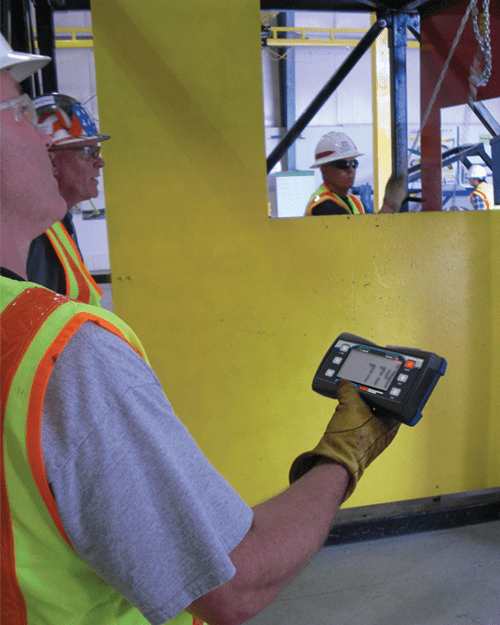

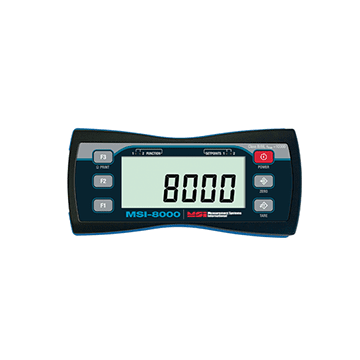

The MSI-8000 remote display makes wireless control easy with the ability to operate weighing systems from a distance. The wireless remote display can be used for viewing MSI ScaleCore-based crane scales and dynamometers, including any RF compatible MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh overhead crane scale, or MSI-7300 Dyna-Link 2 tension dynamometer. Both devices are compact and carry an RF effective range of 300 feet (line of sight) and operate on a license-free 2.4 GHz frequency. With user-friendly keypads, standard function keys for both devices include: On/Off, Zero, Tare and Print. In addition, two userdefined keys are included for peak hold, high resolution, total, view total, net/gross, and units switching. Three selectable setpoints come standard in both models, with two of the selectable setpoints utilizing the programmable user-defined keys.
The MSI-8000 features a heavy-duty NEMA 4/IP65 enclosure, making it ideal for use in nearly any operating environment. The MSI-8000 features a large, six-digit, one-inch LCD display for improved visibility, and a user-friendly keypad for simple configuration and operation. Just one MSI-8000 communicates wirelessly with up to four compatible MSI devices and an integrated RS-232 data port allows the MSI-8000 to easily interface with peripheral devices such as printers, PCs and scoreboards. Power to the MSI-8000 is supplied by an internal rechargeable lithium polymer battery, which provides up to 24 hours of continuous use between charging.
| Enclosure: NEMA Type 4, IP65Weight: 0.98 lb (445 g) Keypad: Display: Units Displayed: | Annunciators: Stable, COZ, low battery, peak, net, kg, kN, lb, M, ton, setpoint, function LEDs Power: Operating Time: Operating Temperature: | RF Radio Link: 2.4 GHz 802.15.4 Communicates with RF 3460, 4260, 7300, 7000 & 7001 RF Effective Range: Connector: Warranty: |
| Model | MSI-8000 Remote Display RF Handheld (Requires an MSI Crane Scale or MSI-7300 equipped with a RF modem), MSI-8000 Battery Charger 115/230 VAC 50/60 Hz. North American Style Plug, FINAL ASSY BATTERY CHARGER INTL 8000, CABLE ASSY,SERIAL I/O DCE D9 SOCKETS 8000, OPTION KIT AUDIBLE ALARM HANDHELD DISPLAY 8000, MSI-8000 Car Charger 12VDC Cigarette Lighter Battery Charger. 5VDC 2.4 A |
|---|
DigiWeigh Scale Systems offers a wide variety of industrial weigh scale solutions. Our service department is available to help troubleshoot your problems and to assist with scheduled PM/Calibration visits.
