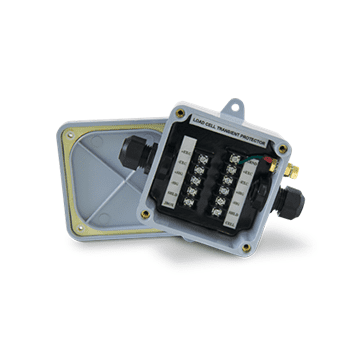

LCP-1 DC Transient Protector


  • Low cost, non-serviceable
  • Effective series protection for strain gauge transducers
  • Encapsulated circuitry ensures positive protection against fungus or corrosion on boards
  • Two nylon strain reliefs for 0.187 to 0.312 in (4.7 to 7.9 mm) diameter cable

The economical LCP-1 DC Transient Protector can be used indoors or outdoors. It provides series protection for strain gauge transducers.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

LCP-1 DC Transient Protection Specifications

Protection Type:
Four-channel series type with separate shield

Maximum Excitation Voltage Rate:
18 VDC or 18 VAC

Clamping Voltage:
75 VDC or 75 VAC

Clamping Time:
<100 nanoseconds typical

Peak Surge Currents:
5,000 amps any line to ground and 5,000 amps excitation to excitation

Maximum Serial Transmission Rate:
30 Kbaud

Through a 0.25 in lug to a 20 ft insulated #10 AWG ground wire provided

Cable Fitting:
(2) Standard nylon strain relief for 0.187 to 0.312 in diameter cable

Chemically-resistant PVC.  This device, for outdoor or indoor service, is not intended for washdown service (NEMA 4) or for submersion (NEMA 6). Optional NEMA 4X available.

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C) consistent with NTEP guidelines

7,500 M ohm minimum

(L x  W x H)
4.0 × 4.0 × 2.50 in

One-year limited


DC Protection,LCP-1 1/2in NPT Fitting
