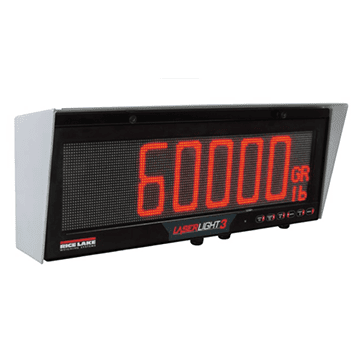

LaserLight3 Color Large-Display Weight Indicator


  • Available with 128 × 32-pixel color display
  • Displays six high-intensity digits up to 5 in height
  • Adjustable daylight/night intensity
  • Mirror mode (reverse image) function
  • Durable weather tight enclosure with flip-down door
  • Flat-wall mounted or add VESA or offset mount


  • Wireless LAN, Wi-Fi interface 802.11 a/b
  • Wireless interface, pair of ConnexLink™ radios and mount
  • Pole mount kit, VESA flat wall for 2 to 6 inch pole (W × H) 200 × 100 mm, 6 fasteners (M4 x 8 mm)
  • Sunshade visor, 8-inch painted steel

LaserLight3 large-display weight indicator has a color display with customizable messaging and Learn Mode to identify and interpret communication protocols from a wide range of weighing equipment.

Guaranteed Safe Checkout

LaserLight 3 Specifications

AC voltages: 100 to 240VAC; 50/60Hz
120 watt (120 VAC)

Output Interface:
Ethernet TCP/IP, independently configurable echo port

Input Data Format:
Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600 and 115200 self-learning or configurable

Continuous or out-of-motion modes
Message interrupt mode

Digital I/O:
Four I/O read or set
5V logic

Communication Ports:
Ethernet TCP/IP, RS-232, RS-485, 20 mA
Optional ConnexLink™ wireless radio, WLAN interface 802.11 a/b

Character Format:
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits

Maximum Viewing Distance:
4-inch character 100 ft (30 m)
5-inch character: 150 ft (46 m)

Viewing Angle:

Bright, outdoor color LED lamps
128- × 32-pixel, 4 mm pitch
Decimal or comma indication
Weight display with units and mode
Message display 1, 2 or 4 lines

Zero, Gross/Net, Tare, Units, Print, Menu

Software enable, 12 or 24 hour format

Software enable, US or ISO format

(L x W × H)
25 × 10 × 6 in

Temperature Range:
Operating: -40 °F to 120 °F (-40 °C to 49 °C)

Mild steel, powder-coated

20 lb (9 kg)

Two-year limited

NTEP CC 22-096
Measurement Canada AM-6210C


Indicator,LaserLight3 LL3 Large-Display Weight Indicator, 32×128 LED, 115-230VAC, Pole Mount,LaserLight3 Using VESA bracket 2-Inch To 6-Inch Poles, Pole,Mount Kit LaserLight2 4 inch Remote Display & LaserLight3 , Summit Gray, Sunshade,LaserLight3, Ind Opt,Wireless LAN Card RS232/WiFi Interface 802.11 A/B 10/100 XPico for LaserLight3, LaserLight3 RF Kit ConnexLink Transceiver Kit
