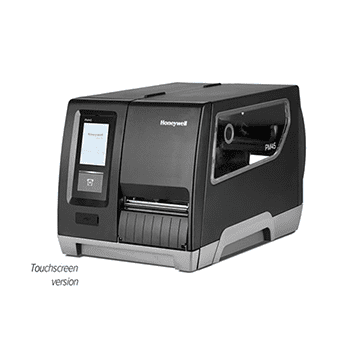

Honeywell PM45 Direct Thermal / Thermal Transfer Label Printer


  • Two types of user interfaces, touchscreen display or icon LEDs (no display)
  • PrintSet MC support for systems settings and configuration (required for Icon LED model)
  • Opintel support for print optimization and firmware upgrades
  • Smart Media calibration detects printing method, media type and length
  • Enhance security with secured flashing
  • Internal rewinder
  • Label tear sensor
  • Larger ribbon collapsible core for easy ribbon removal
  • Ethernet/USB/serial
  • USB host port for connecting storage devices, scanners, or keyboards
  • USB device port to connect to a PC
  • Wide range of printer accessories
  • US power cord

PM45 is a mid-range industrial bar code printer that is designed for a wide variety of industrial bar code printing applications. The PM45 supports a wide range of media, including ink-in and ink-out ribbons with a 1-inch core size, enhancing the time between media resupplies

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

Honeywell PM45 Specifications

Print Speed:
203 dpi: 2 to 14 ips
300 dpi: 2 to 12 ips

Supply Roll Capacity:
Maximum 8.375 in diameter on 3 in core

Media Width:
0.79 to 4.5 in

Media Type:
Tag, label, ribbon

Print Length:
0.25 to 99 in (6 to 247 mm)

Media Thickness:
0.003 to 0.01 in

Ribbons (Optional):
2 in core, up to 4.33 in wide

Printer Command Language:

Bar Codes:
SCC-14, HIBC 39, EAN-13, HIBC 128, ITF-14, EAN-128, GS1 Databar Expanded, ISBT 128, Code 39, EAN-8, Code 128, GS1-128, UPC-E, UPC-A, Interleavened 2 of 5, RSS14E, ISBT Data Matrix, Data Matrix

Graphics Support:

256 MB Flash/1GB Ram

USB 2.0 Host (x2), USB 2.0 Device, Ethernet 10/100 Mbps, RS-232 (up to 115.2 KB/s)

Power Source:
100 to 240 VAC, 50/60 Hz

Operating Temperature:
41 °F to 104 °F (5 °C to 40 °C)

(L × W × H)
19.92 × 10.25 × 15.70 in

50.71 lb (23 kg)

UL listed

One-year limited
Printhead (original): One-year or 1 million linear inches
Printhead (replacement): 90 days


Printer,OPT WLAN PX940 US and Canada only. Field Installable. 802.11, Rewinder,Label DMXREW1 Label Rewinder/Unwinder, Printer OPT,Standard Industrial Cutter Kit PM-45, Label Roll,DTL 3.00×3.00 8 in DIA 3 in Core 2000 per Roll Perfed Wound Out Top Coated 20 Degree + Application Temperature, Label Roll,DTL 4.0 x 6.0 8 in DIA, 3 in Core, Perfed, 1000 labels/roll, Top Coated, 20 deg application temperature, Label Roll,DTL 4.25×2.50 6 in DIA 3 in Core 1,090 per Roll Perfed Wound Out Top Coated 20 Degree + Application Temperature, Label Roll,TTL 2.00×1.00 8 in DIA 3 in Core 5500 per Roll Thermal Transfer Wound Out, Label Roll,TTL 4.00×6.00 8 in DIA 3 in Core 1000 per Roll Thermal Transfer Wound Out, Label Roll,TTL 4×6.5 8 in DIA 3 in Core 900 per Roll Thermal Transfer Wound Out, Label Kit,4 in Thermal QTY 4 – 4 x 4 in Great Label TTL label, QTY 2 – 4 in ribbons, Ribbon,Thermal Transfer 4.00 Maxwax GPR Plus Black 1181 Feet Long 1 inch Core, Printhead,203dpi PM45 Honeywell PM45 Printers, Printhead,300dpi PM45 Honeywell PM45 Printers, Cable,Universal Serial Interface (Both RS232/20mA) 25 Pin D-Sub Male To Blunt End 25-pin side-3-Red, 7-Black, 4 & 5 jumpered, 9-Green, 10-White, Cable,USB 6ft USB-A(male) to USB-B(male), Cable,Null Modem DB9F/M DB9F To DB9M, 6 feet, Cable,DB9M To Blunt End Male DB9 to blunt end cable 5 Feet PINOUT: Black Pin-5, Red Pin-3, Green Pin-2
