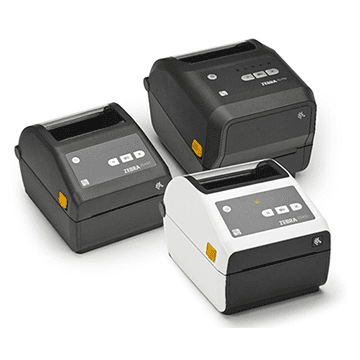

Zebra ZD421 Direct Thermal Label Printer
Zebra ZD421 Direct Thermal Label Printer

Zebra ZD421 Direct Thermal Label Printer

$6.37 – $1,338.66

  • Print width 4.09 in
  • Print speeds of 6 in per second
  • 203 dpi
  • USB 2.0 host
  • Auto sense EPLZ or ZPL
  • Tear bar

Options

  • RS-232 (DB-9F)
  • Peeler mechanism
  • Models available with Ethernet
SKU: N/A Category: Tag:
Guaranteed Safe Checkout

Zebra ZD421 Series Specifications

Paper Width:
0.75 to 4.25 in (19 × 108 mm)

Paper Thickness:
0.003 to 0.0075 in (0.08 × 0.19 mm)

Paper Diameter (OD):
5 in (127 mm)

Paper Roll Shaft:
0.5 and 1.0 in (13 × 25 mm) standard

Resolution:
203 dpi/8 dots per mm

Memory:
512 MB flash, 128 MB SDRAM

Print Width:
4.09 in (104 mm)

Maximum Print Length:
3.90 in (99 mm)

Maximum Print Speed:
6.0 in (152 mm) per second

 Media Sensors:
Full width, movable reflective, multi-position transmissive/gap sensor

Ribbon Outside Diameter:
2.6 in

Ribbon Standard Length:
984 ft (300 m)

Ribbon Ratio:
1:4 media to ribbon

Ribbon Width:
0.585 to 4.65 in

Ribbon Core Inner Diameter:
1 in

Interface:
USB 2.0 host
Ethernet TCP/IP
Optional: RS-232 serial (DB-9F)

 Temperature:
Operating: 40 °F to 105 °F (4 °C to 41 °C)
Storage: -40 °F to 140 °F (-40 ° C to 60 °C)
Operating humidity: 5% to 95% non-condensing
Storage humidity: 5% to 95% non-condensing

Electrical:
Auto-detectable (PFC compliant)

Dimensions:
(L x W x H)
ZD421: 8.69 × 6.98 × 5.93 in
ZD421T: 10.5 × 8.0 × 7.5 in

Warranty:
One-year limited

Zebra ZD421 Bar Code Symbologies:

Barcode ratios: 2:1 (non-rotated) and 3:1 Linear bar codes; Codabar, Code 11 (ZPL), Code 128, Code 39, Code 93, EAN-13, EAN-8, EAN-14 (ZPL), German Post Code (EPL), Industrial 2-of-5 (ZPL), Interleaved 2-of-5, Japanese Postnet (EPL), ISBT-128 (ZPL), Logmars (ZPL), MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5 (ZPL), UCC/EAN-128 (EPL), UPC and EAN 2 or 5 digit extensions (ZPL), UPCA, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E and GS1 DataBar (formerly RSS) Two-dimensional: Codablock (ZPL), Code 49 (ZPL), Data Matrix, MaxiCode, QR Code, MicroPDF417, Aztec For EPL and ZPL except where noted

Model

Printer,ZD421 Zebra Direct Thermal, 4IN Wide, 203DPI, USB Host, 100-240VAC w/US Power Cord, Printer,ZD421 Zebra, Direct Thermal, 4in Wide, 203DPI, USB Host, 100-240VAC With US Power Cord, LAN 10/100 Ethernet Connectivity, Printer,ZD421T Zebra Thermal Transfer, 4IN Wide, 203DPI, USB Host, 100-240VAC with US Power Cord, Printer,ZD421 Zebra, Thermal Transfer, 4in Wide, 203DPI, USB Host, 100-240VAC With Us Power Cord, LAN 10/100 Ethernet Connectivity, Printer OPT,Peeler ZD421T Front Mount, Passive Peel Option Field-Installable, Printer OPT,Peeler ZD421D Front Mount, Passive Peel Option Field-Installable, Printer OPT, RS-232 ZD411 and ZD421 Series. Field Installable., Cable,DB9M To Blunt End Male DB9 to blunt end cable 5 Feet PINOUT: Black Pin-5, Red Pin-3, Green Pin-2, Printer OPT, Ribbon Core Adapter, ZD420T. Used to Accept 1 inch diameter ribbon cores. Set of two, Ribbon, 2000 Wax, ZD420T 1 inch core 2.52 inches wide x 984 feet long, Ribbon, 2000 Wax, ZD420T 1 inch core 3.31 inches wide x 984 feet long, Ribbon, 2000 Wax, ZD420T 1 inch core 3.31 inches wide x 984 feet long, Ribbon, 5555 Wax/Resin ZD420T 1 inch core 2.52 inches wide x 984 feet long, Ribbon, 5555 Wax/Resin ZD420T 1 inch core 3.31 inches wide x 984 feet long, Ribbon, 5555 Wax/Resin ZD420T 1 inch core 4.33 inches wide x 984 feet long, Ribbon, 5555 Wax/Resin ZD420T 1 inch core 4.33 inches wide x 984 feet long, Ribbon, 5095 Resin ZD420T 1 inch core 3.31 inches wide x 984 feet long, Ribbon, 5095 Resin ZD420T 1 inch core 4.33 inches wide x 984 feet long, Ribbon,Thermal Transfer 2.25IN, 243FT, Wax, 1/2IN Core
