EL226 AC Transient Protector


  • Duplex receptacle
  • 20 ft ground cable
  • Factory serviceable
  • 9 ft cord with three-prong plug
  • Plugs into any grounded three-prong outlet
  • Indicator light shows protection is secure
  • Excellent as a prefilter for voltage regulators
  • Reliability and quality top-of-the-line performance
  • Shielded line cord for protection against induced transients
  • Positive proven protection for scales, computers and printers
  • Convenient mounting holes; can be mounted on any surface

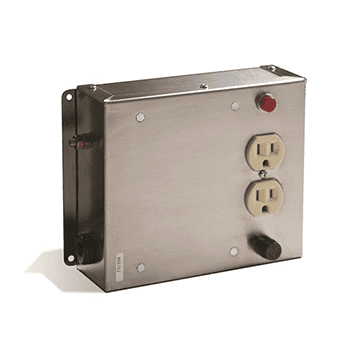

The EL226 AC Transient Protector is designed to filter voltage spikes and electrical noise from AC wall receptacles that provide power to sensitive equipment. The reliable EL226 can be mounted on any surface, providing optimal protection for scales, computers and printers.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

EL226 AC Transient Protector Specifications

Operating Voltage:
120 VAC 50/60 Hz, nominal

Maximum Current:
10 A rms instantaneous
7.5 A rms continuous

Clamping Time:
Less than three to five nanoseconds

EMI/RFI Protection:
13 stages

Protection Type:
13-stage filters out both common and normal mode transients

20 ft insulated #10 AWG wire provided

Stainless steel

Operating Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Circuit Board:
Fiberglass reinforced 4-glass epoxy

(L × W × H)
8.00 × 6.00 × 2.50 in

One-year limited


AC Protection,Duplex Outlet
