BenchMark™ HE-X Hostile Environment Extreme Bench Scale

$3,919.50$4,824.00

  • IP69K stainless steel load cell
  • Rugged washdown design, rigid 304 stainless steel frame and cover constructed with continuous welds
  • Four adjustable stainless steel support feet
  • Meets Sanitary Design Principles
  • Meets HACCP requirements

Extreme Clean Bench Scale

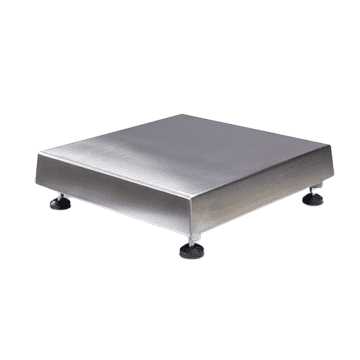

Equipment used in highly sanitary conditions needs a strong defense against microscopic bacteria.  Rice Lake’s BenchMark HE-X bench scale is designed to meet strict sanitary design principles, withstanding extreme washdown demands.

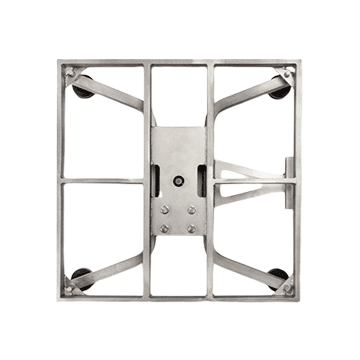

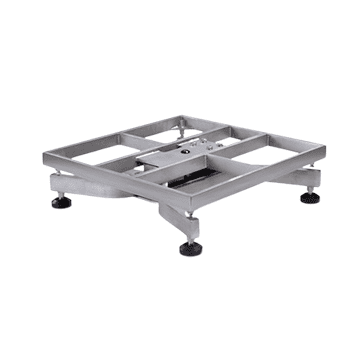

Built for highly sanitary environments, the BenchMark HE-X is made from 304 stainless steel. The frame is made from solid stainless steel plates connected with continuous welds. An IP69K hermetically sealed load cell is protected from production materials and washdown chemicals. The BenchMark HE-X open design and no exposed threads mean product and bacteria have nowhere to hide.

The BenchMark HE-X bench scale is easy to clean and won’t be pushed around during high-pressure washdown because of the heavy steel frame. This scale also has an easily removable cover, making it perfect for extreme sanitary environments.

SKU: N/A Category: Tags: , ,
Guaranteed Safe Checkout

BenchMark HE-X Specifications

Load Cell, NTEP Certified:
IP69K stainless steel, hermetically sealed

Output Impedance:
1,000 ohm

Maximum Overload:
150% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Scale Frame:
AISI304L, glass bead blasted for even appearance

Scale Cover:
AISI304L, straight line finish, Ra=45 +/- 10

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Warranty:
Three-year limited (includes water ingress)

Approvals:
Load cell is FM approved

Model

Scale, BENCHMARK HE-X BMX1218S-50 12x18x5-1/4 50lb 10ft SST, Scale, BENCHMARK HE-X BMX1218S-100 12x18x5-1/4 100lb 10ft SST, Scale, BENCHMARK HE-X BMX1818S-50 18x18x5-1/4 50lb 10ft SST, Scale, BENCHMARK HE-X BMX1818S-100 18x18x5-1/4 100lb 10ft SST, Scale, BENCHMARK HE-X BMX1818S-150 18x18x5-1/4 150lb 10ft SST, Scale,BENCHMARK HE-X BMX1818S-200 18x18x5-1/4 200lb 10ft SST, Scale, BENCHMARK HE-X BMX1818S-250 18x18x5-1/2 250lb 10ft SST, Scale, BENCHMARK HE-X BMX1818S-300 18x18x5-1/2 300lb 10ft SST, Scale, BENCHMARK HE-X BMX1818S-500 18x18x5-1/2 500lb 10ft SST, Scale, BENCHMARK HE-X BMX1818S-1000 18x18x5-1/2 1000lb 10ft SST, Scale, BENCHMARK HE-X BMX1824S-50 18x24x5-1/4 50lb 10ft SST, Scale, BENCHMARK HE-X BMX1824S-100 18x24x5-1/4 100lb 10ft SST, Scale, BENCHMARK HE-X BMX1824S-150 18x24x5-1/4 150lb 10ft SST, Scale, BENCHMARK HE-X BMX1824S-200 18x24x5-1/4 200lb 10ft SST, Scale, BENCHMARK HE-X BMX1824S-250 18x24x5-1/2 250lb 10ft SST, Scale, BENCHMARK HE-X BMX1824S-300 18x24x5-1/2 300lb 10ft SST, Scale, BENCHMARK HE-X BMX1824S-500 18x24x5-1/2 500lb 10ft SST, Scale, BENCHMARK HE-X BMX1824S-1000 18x24x5-1/2 1000lb 10ft SST, Scale, BENCHMARK HE-X BMX2424S-100 24x24x5-1/4 100lb 10ft SST, Scale, BENCHMARK HE-X BMX2424S-150 24x24x5-1/4 150lb 10ft SST, Scale, BENCHMARK HE-X BMX2424S-200 24x24x5-1/4 200lb 10ft SST, Scale,BENCHMARK HE-X BMX2424S-250 24x24x5-1/2 250lb 10ft SST, Scale, BENCHMARK HE-X BMX2424S-300 24x24x5-1/2 300lb 10ft SST, Scale, BENCHMARK HE-X BMX2424S-500 24x24x5-1/2 500lb 10ft SST, Scale, BENCHMARK HE-X BMX2424S-1000 24x24x5-1/2 1000lb 10ft SST
