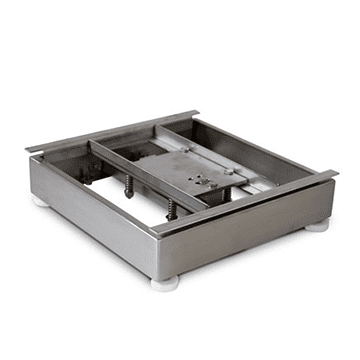

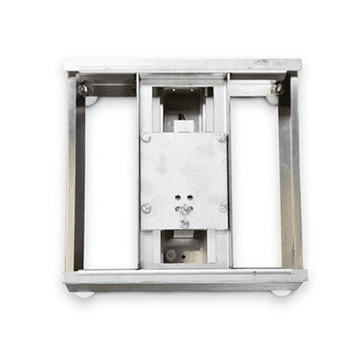

BenchMark® CW-80B Bench Scale


  • NTEP Certified, IP67 stainless steel load cell
  • 304 stainless steel construction
  • LifeGuard™ base design isolates load cell from overloads and shock loads for added durability
  • Specially designed adjustable support feet provide exceptional traction and won’t scratch surfaces
SKU: N/A Category: Tags: ,
Guaranteed Safe Checkout

BenchMark CW-80B Specifications

Load Cell, NTEP Certified:
IP67 stainless steel and environmentally sealed

Output Impedance:
350 ohm

Maximum Overload:

Overload Protection:
Shock-absorbing spider

Scale Frame:
AISI304L, straight line finish, Ra=45 +/- 10

Scale Cover:
AISI304L, straight line finish, Ra=45 +/- 10

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Two-year limited

NTEP CC 96-107, Class III, 3000 d
Measurement Canada AM-5156
Load cell is FM approved


Bench Scale,CW80B-1 10×10 6lb/3kg 10ft SST, Bench Scale,CW80B-2 10×10 10lb/5kg 10ft SST, Bench Scale,CW80B-3 10×10 15lb/7.5kg 10ft SST, Bench Scale,CW80B-4 10×10 30lb/15kg 10ft SST, Bench Scale,CW80B-5 12×12 30lb/15kg 10ft SST, Bench Scale,CW80B-6 12×12 60lb/30kg 10ft SST
