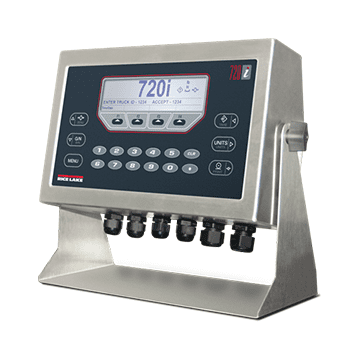

720i™ Programmable Weight Indicator and Controller


  • LCD display
  • Four softkeys
  • Truck in/out, 1,000-ID memory (PCE software version)
  • 32 setpoints, 26 configurable types (Batch software version)
  • Process control engine ProAction PCE define conditions and actions
  • Data storage onboard, ProAction DBE user-defined
  • Eight digital I/O (expandable)
  • One option slot for pluggable options
  • 20 auxiliary print formats
  • Time & date
  • Audit trail tracking and alibi storage
  • Peak hold
  • Rate of change
  • Accumulator
  • Multi-range/interval
  • Local/remote
  • Two full duplex serial ports
  • Header for fiber-optic, Ethernet or USB

Functional and Controllable Digital Weight Indicator

The 720i indicator/controller proves its ability to control more processes, more equipment and more information than other basic models. Automate entire systems by commanding batch formulation, inventory management and traceability. Capture and store weight data, link more peripheral equipment and do it all with ease. The 720i design presents an operator keypad in either universal or panel-mount enclosures. Programmable softkeys and operator prompts offer more functionality and control for busy industrial settings.

Utilize the standard configurable batch engine of the 720i Batching version or explore the programming capabilities of the 720i Advanced Truck version in advanced truck mode. Both versions feature local remote capability, allowing multiple indicators to simultaneously display the same data for effortless tracking. Whether used for truck scale operations, data collection, batching or networking, this versatile indicator/controller is an intelligent solution.

Guaranteed Safe Checkout

720i Weight Indicator Specifications

Line voltages: 100 to 240 VAC
Frequency: 50 to 60 Hz
DC voltages: 12 to 24 VDC

Power Consumption:
25 W

Excitation Voltage:
10 VDC (+/-5 VDC), 16 × 350 ohm or 32 × 700 ohm load cells

Analog Signal Input Range:
-10 mV to +45 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Internal: 8,000,000 counts
Display: 1,000,000

System Linearity:
±0.01% full scale

Digital I/O:
Eight channels on CPU board; optional 24-channel I/O

Communication Ports:
Two ports on CPU board support up to 115,200 bps
Port 2: Full duplex RS-232 with handshaking
Port 4: Full duplex RS-232, simplex 20mA
Optional dual-channel serial expansion boards
Channel A: RS-232, RS-485, 20 mA
Channel B: RS-232, 20 mA

240 × 64 pixel, transflective LCD
Panel mount: 3.8 × 1.2 in (96 × 30 mm)
Universal: 5.3 × 1.5 in (133 × 39 mm)

Ten-key (panel mount) membrane panel
22-key (universal) membrane panel tactile feel

Temperature Range:
Certified: 14 °F to 104 °F (-10 °C to 40 °C)
Operating: 14 °F to 122 °F (-10 °C to 50 °C)

NEMA Type 4X/IP66
Stainless steel

Universal enclosure: 9.5 lb (4.3 kg)
Panel Mount enclosure: 8.5 lb (3.9 kg)

Two-year limited

EMC Immunity:
3 V/m

NTEP CC 08-022, Class III/IIL 10,000d
Measurement Canada AM-5677C
Class III/IIIHD 10,000d
CE Marked
UL/cUL Listed (universal)
UL/cUL Recognized (panel mount)


Indicator,720i Universal With PCE Software ROHS Compliant, 115VAC, Indicator,720i Universal With PCE Software ROHS Compliant 85VAC-260VAC CEE 7/7 Power Cord, Indicator,720i Universal DC-DC Convertor, 12 – 36VDC, 25 Watt, Indicator,720i Panel Mount ROHS Compliant, 85VAC-260VAC Loaded with PCE Firmware., Indicator,720i Panel Mount,OIML Marked,ROHS Compliant,85VAC-260VAC, Indicator,720i Panel Mount with DC-DC Convertor, 12 – 36VDC Nominal, 25 Watts., Indicator,720i Universal With Batch Software, ROHS Compliant, 115VAC, NEMA 5-15 Power Cord, Indicator,720i Universal With Batch Software, ROHS Compliant, 85-260VAC, CEE 7/7 Power Cord, Indicator,720i Panel Mount, with Batch Software, ROHS Compliant, 85-260VAC
