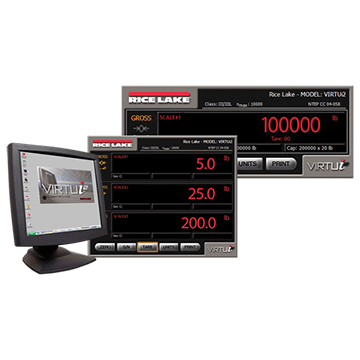

VIRTUi²® PC-based HMI for iQUBE²®


  • Virtual front panel consists of display and five-button keypad
  • Web browser-based iQUBE² cell status
  • Provides local and remote reporting of diagnostics and error conditions
  • Up to four scales and one total scale
  • Primary/secondary units configuration (lb, kg, short tons, metric tons, none)
  • RS-232 communications at up to 460 kbps
  • Electronic Data Processing (EDP) port over RS-232 and TCP/IP
  • Printer port for output-only, simplex communications
  • Two print formats
  • Provides iQUBE² configuration screen and iQUBE² digital I/O configuration
  • Supports iQUBE² diagnostics with configurable error viewing
  • Peak weight history
  • Recalibration notification
  • Concentrated load capacity (CLC)
  • Section capacity

The PC-Based HMI for iQUBE²

VIRTUi² is the second generation of virtual indicators, providing the functionality of a basic weight indicator and placing it right on your computer screen. This PC-based solution is NTEP Certified and enables users to monitor cell diagnostics, set next calibration alerts, send email alerts, configure gross/net print formats as well as remotely view load cell status via a web browser when used with iQUBE². VIRTUi² provides the same functionality of a physical indicator with the convenience and safety of remote functionality.

Virtui² is a Windows®-based desktop application that works with iQUBE²® to replicate simple indicator functionality ideal for system integrators and OEMs wanting to provide a PC-based solution. Load cells are individually monitored and calibrated, making setup easy.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

VIRTUi² PC-based HMI for iQUBE² Specifications

Minimum System Requirements:
Windows® 8.1 and newer

Serial port
USB to serial converter, or Ethernet TCP/IP for connection to iQUBE²
Additional serial ports are required for connections to printers/remote displays

Units (lb, kg, short tons (tn), metric tons (t), NONE) gross/net, motion, center of zero
NTEP CC 04-058 Class III/IIIL, 10,000d

Activation Code, Virtui2 Software
