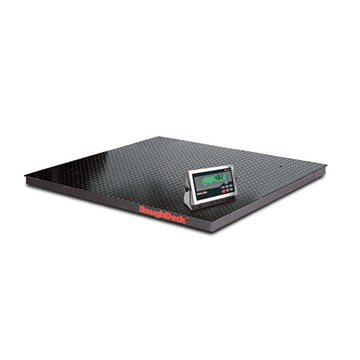

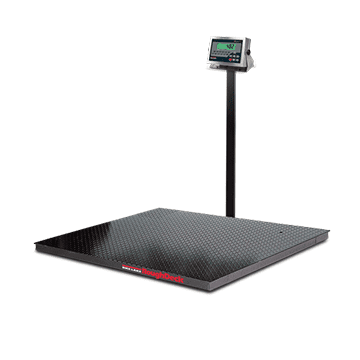

RoughDeck® Rough-n-Ready System, Floor Scale and 482/482 Plus Indicator

Call for Price

  • Package includes: RoughDeck HP 4 ft x 4 ft x 3.5 in floor scale, 20 ft of hostile environment load cell cable, quick disconnect and 482/482 Plus indicator
  • Package is factory-calibrated for 5,000 divisions

Scale

  • Heavy-duty design with structural steel under support
  • Four NTEP certified alloy steel shear beam load cells
  • Side-access JB4SS TuffSeal® junction box

Indicator

  • LED display
  • Time and date battery backed
  • Numeric keypad (482 Plus only)
  • Communication ports

The RoughDeck Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 4 x 4 ft RoughDeck floor scale with one of five quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP Certified system. Mount the indicator remotely or use an optional floor stand. The RoughDeck Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.

Category: Tag:
Guaranteed Safe Checkout

RoughDeck Specifications

End Load Capacity:
100% full scale at 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

 Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty (limited):
Weldment: Five-year
Load cells: Two-year
All other components: One-year

 Approvals:
NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-4827, Class III 5,000d

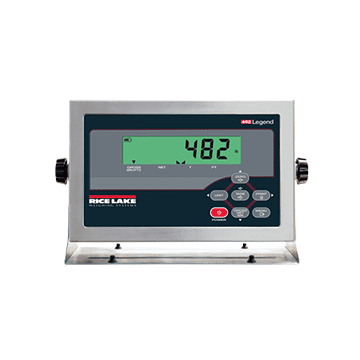

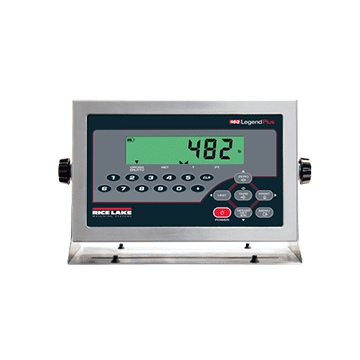

 482/482 Plus Indicator Specifications

Communication Ports:
Com 1: RS-232 full duplex
Com 2: RS-232 full duplex or 20 mA simplex, continuous
Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity		 Display:
LCD backlit display, Transmissive/Transflective 0.8 in (20 mm), six-digit, seven-segment

Annunciators:
Gross, net, center of zero, standstill, lb, kg, tare, preset tare

Keys/Buttons:
Flat membrane panel, embossed keys, tactile feel

 Rating/Material:
Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steel

Approvals:
NTEP CC 12-123
Measurement Canada AM-5892C, Class III/IIIHD, 10,000d
CE Marked
cULus Listed
