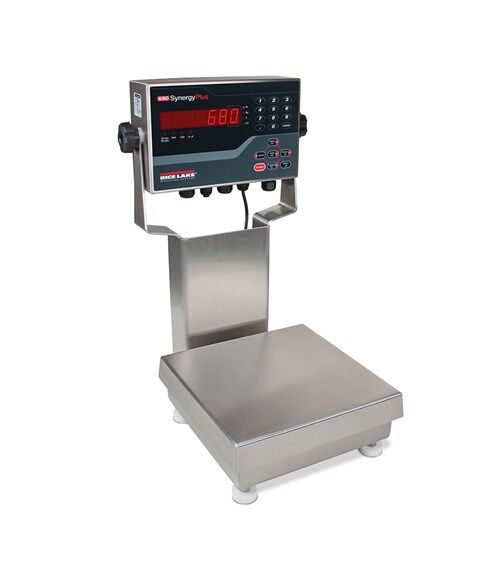

Ready-n-Weigh Bench Scale System CW-90XB Scale Base 680 Indicator

$3,004.28$3,124.88

  • Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator and 12-inch column
  • Factory calibrated with indicator setup and configured for 5,000 divisions
  • Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
  • AC power 100 to 240 VAC
  • Full numeric keypad
  • LED display suitable for a variety of environments
  • Battery backed time and date
  • Standard RS-232 serial ports for connecting to a variety of peripherals
  • Ethernet TCP/IP

Complete Scale Package

The CW-90XB Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90XB light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds.  Each scale package arrives factory calibrated for quick setup.

Guaranteed Safe Checkout

CW-90XB Bench Scale Specifications

Load Cell, NTEP Certified:
IP69K stainless steel and hermetically sealed

Scale Construction:
304 stainless steel

Maximum Overload:
180% to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Scale Frame:
AISI304L, straight line finish, Ra = 45 +/- 10

Scale Cover:
AISI304L, straight line finish, Ra = 45 +/- 10

Cable Length:
34 in

Compensated Temperature Range:
14 °F to 104 °F (-10 °C to 40 °C)

Approvals:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082
Load cell is FM approved

Warranty:
Three-year limited (includes water ingress)

 680 Indicator Specifications

Communication Ports:
Two RS-232 (three-wire)
RS-485/422 (two-wire or four-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)

Display:
Seven 0.8-inch tall, seven-segment digits

Status Annunciators:
Eight LED annunciators

Keys/Buttons:
Flat membrane panel, tactile feel
(18 buttons plus ON/OFF)

Rating/Material:
Rating: IP69K (IP66 with RJ45)
Material: AISI 304 stainless steel

Approvals:
NTEP CC 19-021
Measurement Canada AM-6121C
cULus Listed
CE Marked

Warranty:
Two-year limited

Model

Scale PKG,CW-90XB-680 US 10×10 5 lb/2.5 kg with 12 inch column 115-230VAC SST US power cord, Scale PKG,CW-90XB-680 US 10×10 10 lb/5 kg with 12 inch column 115-230VAC SST US power cord, Scale PKG,CW-90XB-680 US 10×10 25 lb/10 kg with 12 inch column 115-230VAC SST US power cord, Scale PKG,CW-90XB-680 US 12×12 25 lb/10 kg with 12 inch column 115-230VAC SST US power cord, Scale PKG,CW-90XB-680 US 12×12 50 lb/25 kg with 12 inch column 115-230VAC SST US power cord, Scale PKG,CW-90XB-680 US 12×12 100 lb/50 kg with 12 inch column 115-230VAC SST US power cord
