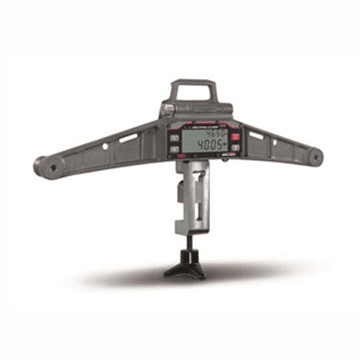

MSI Dyna-Clamp Tension Meter


  • Dual line LCD display
  • Two user-programmable function keys
  • IP65 anodized aluminum frame
  • RS-232 port
  • Up to 8 factory calibrations included at no additional cost

(Contact MSI for application consultation)

  • Heavy-duty carrying case

Reliable Tension Meter with Easy-to-Read LCD Display

Quickly Check Wire Rope Tension

The MSI Dyna-Clamp tension meter has a wire rope engagement site window to help ensure accurate tension readings. The MSI Dyna-Clamp features an easy-turn power screw, to make measuring wire rope tension simple and effortless, even in difficult environments.

Meeting Safety Standards with Every Application

The MSI Dyna-Clamp has accommodations for a safety strap, complying with OSHA requirements. Users can measure wire ropes with up to one-inch diameters without changing equipment.

Large, Easy-To-Read Display

The Dyna-Clamp’s large LCD display can be clearly read in bright, sunny conditions and features a scratch-resistant overlay for added durability. Two lines on the display allow users to view two measurements. The live wire rope tension is prominently displayed on the primary display line, while the secondary display line is configurable to show wire rope diameter, average tension, or peak tension.

Guaranteed Safe Checkout

MSI Dyna-Clamp Specifications

Battery operated two AA-cell 1.5 V alkaline batteries
(can be replaced with rechargeable NiMH cells)

Max Tension:
12,500 lbf (5,670 kgf /55.60 kN)

Operating Time:
Alkaline AA-cells: 24 hours

Wire Rope:
Diameter 3/16 in (5 mm) to 1 in (25 mm)

±3% of capacity

lbf, kgf, kN

Standard: 2,500 divisions

Primary display (bottom) six, 0.7 in (18 mm) numeric digits
Secondary display (top) eight, 0.5 in (13 mm) numeric digits

Function Keys:
Two programmable keys (user-defined) – F1, F2
(test, unit, print, scroll, actfun)
Two permanent keys – power, zero

Two dedicated setpoints for minimum and maximum allowable wire rope tension (LEDs for
measurements outside of allowable range)

Auto-Off Mode:
Prolongs battery life by turning power OFF after 15, 30, 45 or 60 minutes of no activity (user determined)

IP65 powder-coated aluminum frame

Up to eight factory programmed wire rope calibrations

Operating Temperature:
-4 °F to 122 °F (-20 °C to 50 °C)

Operator Use:


Two-year limited

CE Marked


Dyna-Clamp Line Tensiometer for 1.0in Rope 12,500lbs, Dyna-Clamp Carrying Case
