MSI Clamp-On Specifications
| System Accuracy of Calibrated Capacity: 3 to 5% Material: |
Output Resistance: 350 ohm IP Rating: |
Cable Color Code: Red +Excitation Black –Excitation Green +Signal White –Signal Cable Length: |
System Integration and Load Cells

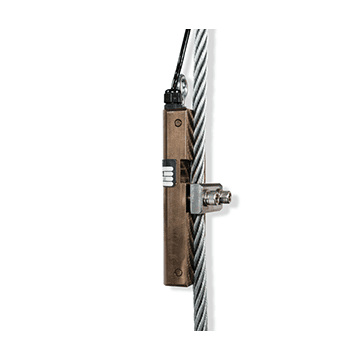

MSI Clamp-On Load Cell
$1,005.00 – $1,969.80
A durable solution for measuring wire rope tension and preventing overloads for cranes and hoists. Available in two envelopes for accommodating the most common wire ropes. Weight-based setpoints can provide the operator alerts and safety shut-offs based on unsafe load conditions.
- Custom sizes available on request
- Pair with an SCT transmitter for basic safety functions
A Durable Solution for Measuring Wire Rope Tension

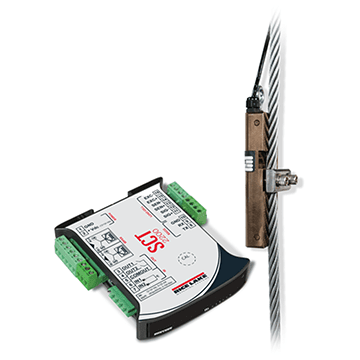

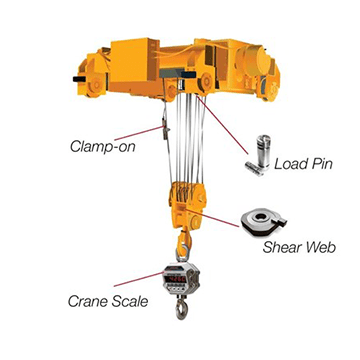

The MSI Clamp-on Load Cell is a durable solution for measuring wire rope tension, providing dependable overload detection and prevention for overhead cranes and hoists. Available in two envelopes to accommodate most common wire ropes, 3/8-1/2 inch and 9/16-3/4 inch, the MSI Clamp-on installs quickly and easily to the wire rope dead end. The integral signal cable can be connected to a variety of detection device such as the MSI-8004 LED indicator or an advanced SCT weight transmitter. Weight-based setpoints can be used to communicate with crane electronics providing operator alerts and safety shut offs based on unsafe load conditions.
| Model | Load Cell Assembly Clamp-On For 3/8 to 1/2 Inch Wire Rope, Load Cell Assembly Clamp-On For 9/16 to 3/4 Inch Wire Rope, 3/8 ClampOn and SCT2200 System Kit, includes 179080 (Clamp On),182589 (SCT2200-AN) and 88792 (12VDC DIN rail PSU), 9/16 ClampOn and SCT2200 System Kit, includes 179082 (Clamp On),182589 (SCT2200-AN) and 88792 (12VDC DIN rail PSU) |
|---|
