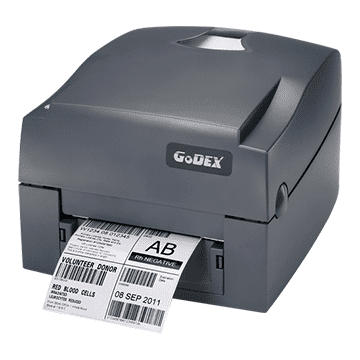

GoDEX G500 Direct Thermal and Thermal Label Printer


  • Auto language emulations GEPL, GZPL
  • Free GoLabel design software for EZPL or Q Label
  • 203 dpi (8 dot/mm)

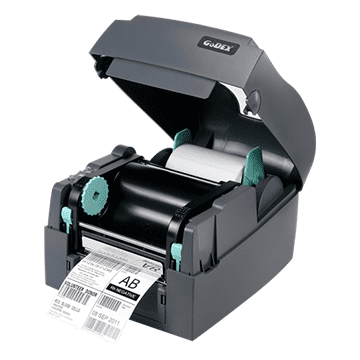

  • Drop-in media loading

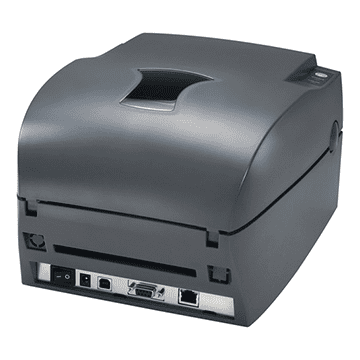

  • USB or RS-232 (DB-9F) interface
  • Plain, gap label, black, mark or fanfold label
  • Label length detection
  • 32-bit CPU

If your printing requires a high output desktop thermal transfer printer, the G500 is the perfect solution. Industry-leading label and ribbon capacities, and the external media holder make the G500 a great fit for light manufacturing applications. The 300-meter ribbon can handle up to 4,000 labels, 4 × 3-inch, in a single session, without reloading.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

GoDEX G500 Specifications

Print Speed:
5 ips

Print Length:
Minimum: 0.16 in
Maximum: 68 in

Print Width:
4.25 in

Continuous form, gap labeling, black mark sensing and punched sensing
Label roll OD max: 5.0 in

1 in, 1.5 in
Thickness: 0.06 mm to 0.20 mm

Core: 1 in

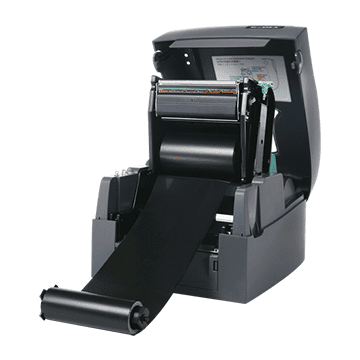

Length: 300 m
Max ribbon roll OD: 2.67 in
Wide: 1.18 to 4.33 in

Printer Language:
GZPL or GEPL, EZ PL auto switch

Resident Fonts:
11 resident alphanumeric fonts (included OCR A and B) are expandable eight times horizontally and vertically. All bitmapped fonts in eight orientations.

Bar Codes:
Code 39, Code 93, Code 128 (subset A, B, C,) UCC/EAN – 128 K-Mart, UCC/EAN – 128, UPC A/E (add on 2 and 5,) 2 of 5, EAN 8/13 (add on 2 and 5.) Codabar, Post Net, EAN 128, DUN 14, MaxiCode, HIBC, Plessey, Random Weight, Telepen, FIM, China Postal Code, RPS 128, PDF 417, Datamatrix code, QR Code

8 MB flash

Baud rate 4800 to 115,200; RS-232 (DB-9F)
USB port U2.0 (B-type)
Ethernet (RJ-45)

Auto switching 100/240 VAC 50/60 Hz

Operation: 41 °F to 104 °F
(5 °C to 40 °C)
Storage: -4 °F to 122 °F
(-20 °C to 50 °C)

Operation: 30 to 85% non-condensing, free air
Storage: 10 to 90% non-condensing, free air

(L × W × H)
11.2 × 8.9 × 6.8 in
(285 × 226 × 171 mm)

6 lb


Two-year limited


Printer,Godex G500 4IN Direct/Thermal Transfer, 203dpi, 110/240VAC with US power cord, Peeler OPT,G500, Cutter,G500, Printhead,G500, Guardian,G-2 G500, RL42TT Stainless Steel Enclosure, Pen,Head Cleaning Box of 12, Label,Pre-Saturated Cards 4×6 25/Box for 4in Wide Printers, Power Supply,RL-42DT, RL-22DT, RL-44TT, G500, Label,Roll TTL 4.0×3.0 5 in DIA 1 in Core 930 per Roll, Ribbon, 4.3In Wax Thermal Transfer, 984ft, Ribbon,2.5IN Wax Thermal Transfer, 984ft
