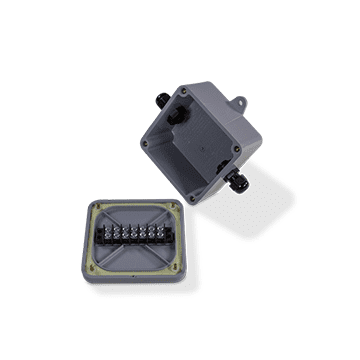

EL168 1-Cell Junction Splice Box
EL168 1-Cell Junction Splice Box

EL168 1-Cell Junction Splice Box

$107.20

  • Non-metallic PVC enclosure with separate input and output cable fittings
  • No soldering, compression or swaged fittings are required
Applications
  • For splicing or extending load cell cable

Use the EL168 1-Cell junction box for splicing or extending load cell cable. The PVC enclosure contains separate input and output cable fittings and no soldering, compression or swagged fittings are required.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

EL168 1-Cell Junction Box Specifications

Dimensions:
(L × W × H)
4.0 × 4.0 × 2.5 in

Temperature Range:
Operating: 0 °F to 122 °F (-18 °C to 50 °C)

 Temperature:
Operating Range
0 °F to 122 °F (-18 °C to 50 °C)

Cable Fittings:
Nylon waterproof strain-relief type

Cable Diameter:
0.079 to 0.314 in (2 to 8 mm)

 Terminal Block:
Rated 300 V/15 A; seven-position, screw terminal can each accommodate up to #16 AWG

Warranty:
One-year limited
Model

J-Box,Splice Single Cell FRP NEMA 4X
