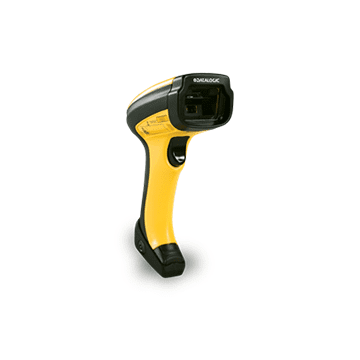

Datalogic PowerScan RF PM9100 Series Laser Scanner

$61.64$1,199.30

  • Wireless operation
  • Operates up to 10 hours on a single charge
  • Datalogic’s patented ‘Green Spot’ technology for good-read feedback
  • Polycarbonate molded with rubber
  • Multi-point operation allows for multiple scanner communications to a single base station
  • Linear Imager

The Datalogic PowerScan RF PM9100 Series laser scanner is a multi-point operation allowing for multiple scanner communications to a single base station.

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

Datalogic PowerScan PM9100 Series Specifications



Light Source:
VLD between 630 to 380 nm

Decode Capabilities:
Codabar, Codablock F, Code 11, Code 128, Code 32, Code 39, Code 39 CIP, Code 39 Full ASCII, Code 4, Code 5, Code 93, Datalogic 2 of 5, GS1 DataBar, IATA, Industrial 2 of 5, Interleaved 2 of 5, ISBN, MSI, Plessey, Standard 2 of 5, UPC/EAN supplementals

Dimensions:
Scanner: 8.4 × 4.5 × 2.8 in
(212 × 109 × 71 mm)
Base station: 10.5 × 3.5 × 2.5 in
(266.7 × 88.9 × 63.5 mm)
(width is 4.2 in/106.68 mm including mounting knobs)

Display:
LCD: 6 lines × 16 characters

Base Station:
US: 110 V±10%, 60 Hz

Weight:
Scanner: 14.2 oz (405.0 g)
Base station: 16 oz (454 g)

Communications:
Host: RS-232 with DB9 S, P/S and 12 ft cable.
KBW (keyboard wedge) with P/S and 6 M Din, coiled cable 12 ft.
USB, 12 ft coiled cable

Frequency Range:
(varies by country)
915 mHz

Temperature Range:
Operating: -4 °F to 122 °F (-20 °C to 50 °C)
Storage: -40 °F to 158 °F (-40 °C to 70 °C)

Humidity:
0 to 90% non-condensing

IP Rating:
Scanner: IP65
Base station: IP64

Drop Resistance:
2 m

Battery Type:
Li-Ion 2150 mAh

Electrical:
Complies to C-CSA-US
(60950 Canada and USA)

Warranty:
Three-year limited

Model

Scanner,PowerScan PM9100 Wireless Scanner Model PM9100-910RB w/o Display, Battery, SR, 915mHZ, RS232 or Keyboard Wedge, Base Station,PowerScan PM9300, USB, RS-232/Keyboard Wedge, 110VAC BC9030-910, Power Supply,PM9300 12VDC, US Plug, PG12-10P35-US (Includes Power Cord 90ACC1886), Cable,Scanner Keyboard Wedge, 6 Pin Mini-DIN PS2 Style PD7130 PM8300-910, Cable,Scanner RS-232 PD7130 8 Foot 9 Pin Female Coiled External Power on Pin 9
